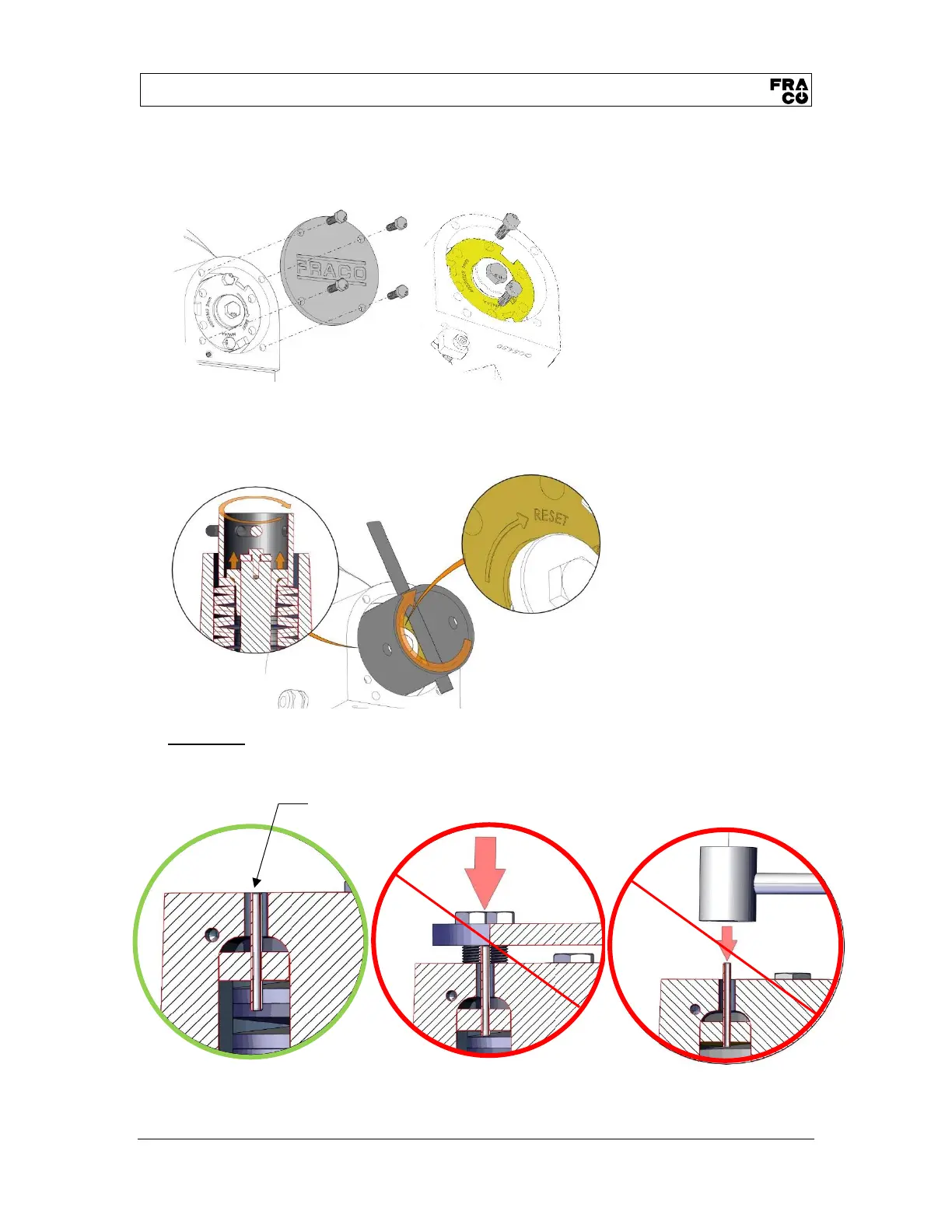

Figure 46 – Access to safety device reset mechanism
Figure 47 – Safety device reset
10.1.1. Emergency brake reset
Note : the emergency brake must be reset after each drop test.
1. Open the access to safety device reset mechanism lid using a 13 mm wrench. Also remove
the two bolts locking the compression ring.
2. Use the tightening tork tool to turn the compression ring. Turn in the reset direction (indicated
by the arrow). Raise the ring untion the spring pin comes up tp the surface.
3. Important! Be careful not to change the position of the spring pin relative to the
mechanism. Do not crush with a hammer nor crush when tightening the lid because
that will modify the mechanism ajustement reference.
Spring pin. It is the
reset reference!
Figure 48 – Safety device spring pin positionning
