Fraco SEP-5000 - Controls; Main Control Panel (CC1); Figure 24 - Main Control Panel (CC1)

Transport platform SEP Serie
SEP user’s manual Page 43 of 89 Doc no. RD-7243-MA-001-02
7.7. Controls
7.7.1. Main control panel (CC1)
N°
Description
1
Platform disconnect switch (480V)
2
Green indicator light (platform safety)
3
Green indicator light (ground safety)
4
Green indicator light (platform door)
5
EMERCENCYSTOP button
6
Light ON / OFF switch
7
Drop test remote control connection socket
8
Bypass port (security line bypass)
9
ON / OFF / DROP key switch
10
Power cable connector
11
Tool outlet 120V 15A

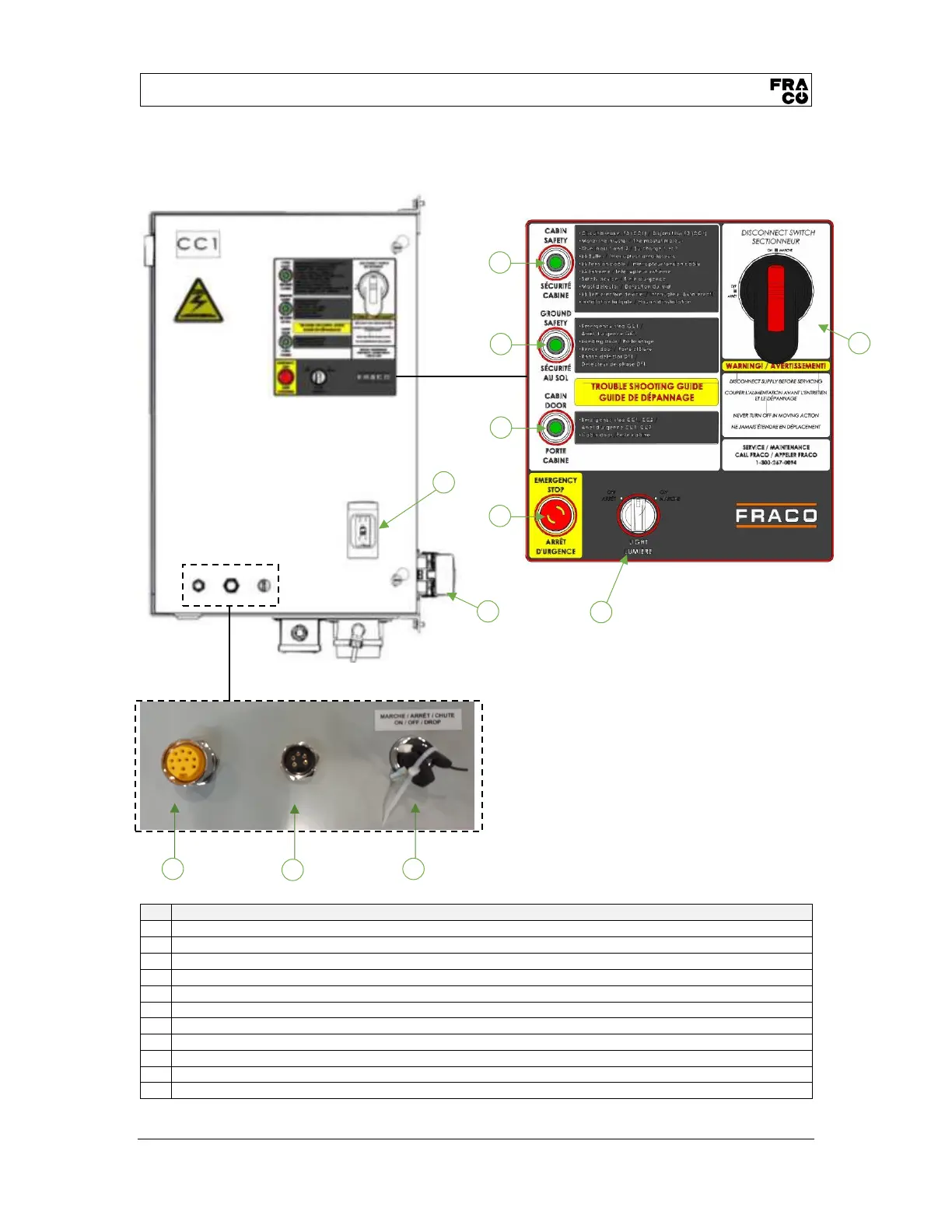

Figure 24 – Main control panel (CC1)
6
1
5
2
4
3
7
8
9
10
11
