Tailgate unloading side:
When the machine stops at a loading level (in front of a landing door), there is activation of the next floor
limit switch detectors HAUT/HIGH (LS5) et BAS/LOW (LS6)). The machine stops and that automatically
locks the loading tailgate.
∞ REFER TO SECTION 7.10 LIMIT SWITCHES (LEVEL DETECTOR), ON PAGE 57.
When the desired floor is reached, observe on the (CC2) control box:
• The white "HAUT/UP" button turns off.
• The white "BAS/DOWN" button turns off.
• The blue "PROCHAIN ÉTAGE ARRÊT / NEXT FLOOR STOP" turns off.
• The yellow «DÉBARRER PORTE/UNLOCK DOOR» button lights up, meaning the tailgate is unlocked.
• The interlock device is then unlocked, and it is possible to lower the loading tailgate.

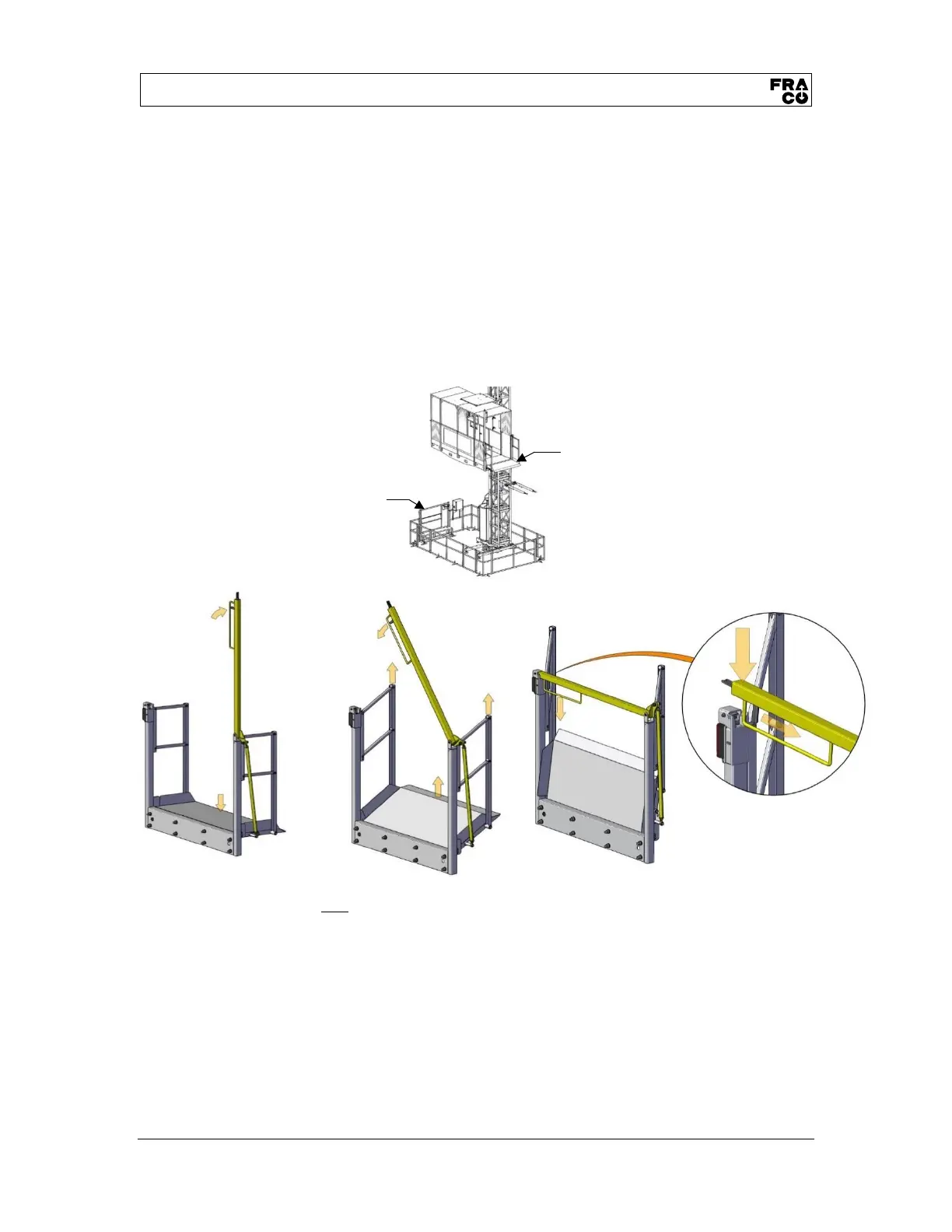

• Pull of the handle to disengage the interlock and completely raise yellow pivoting railing to lower the
loading tailgate.
• To shut the tailgate, lower the yellow pivoting railing completely. Pull on the handle to allow the interlock
device to lock.
Note: when the door is open then closed, the tailgate automatically locks (the platform can be operated
again). On the (CC2) control box:
• The white "HAUT/UP" button lights up.
• The white "BAS/DOWN" button lights up.
• The yellow "DÉBARRER PORTE/UNLOCK DOOR" button turns off, meaning the door is locked once
again.
Note: The white "BAS/DOWN" and "HAUT/UP" buttons of the (CC2) control box will not light up if the
ground control mesh door or a landing door is open and unlocked. If the machine is stopped and the doors
locked, press on the yellow "DÉBARRER PORTE/UNLOCK DOOR" button to unlock the doors and allow
them to open.
