7.9. Opening the doors
7.9.1. Opening the ground protection mesh door
Important! It is impossible to open the ground protection mesh door if the following two (2)
conditions are not fulfilled:
1. The platform must be lowered to the ground, activation of next floor limit switches
detectors BAS/LOW (LS6) and HAUT/HIGH (LS5) and stopped. This unlocks the
interlock device of the ground protection mesh door.
2. The platform tailgate (loading side) must be opened and lowered onto the tresshold of
the ground protection mesh door. This unlocks the mechanical lock under the door.

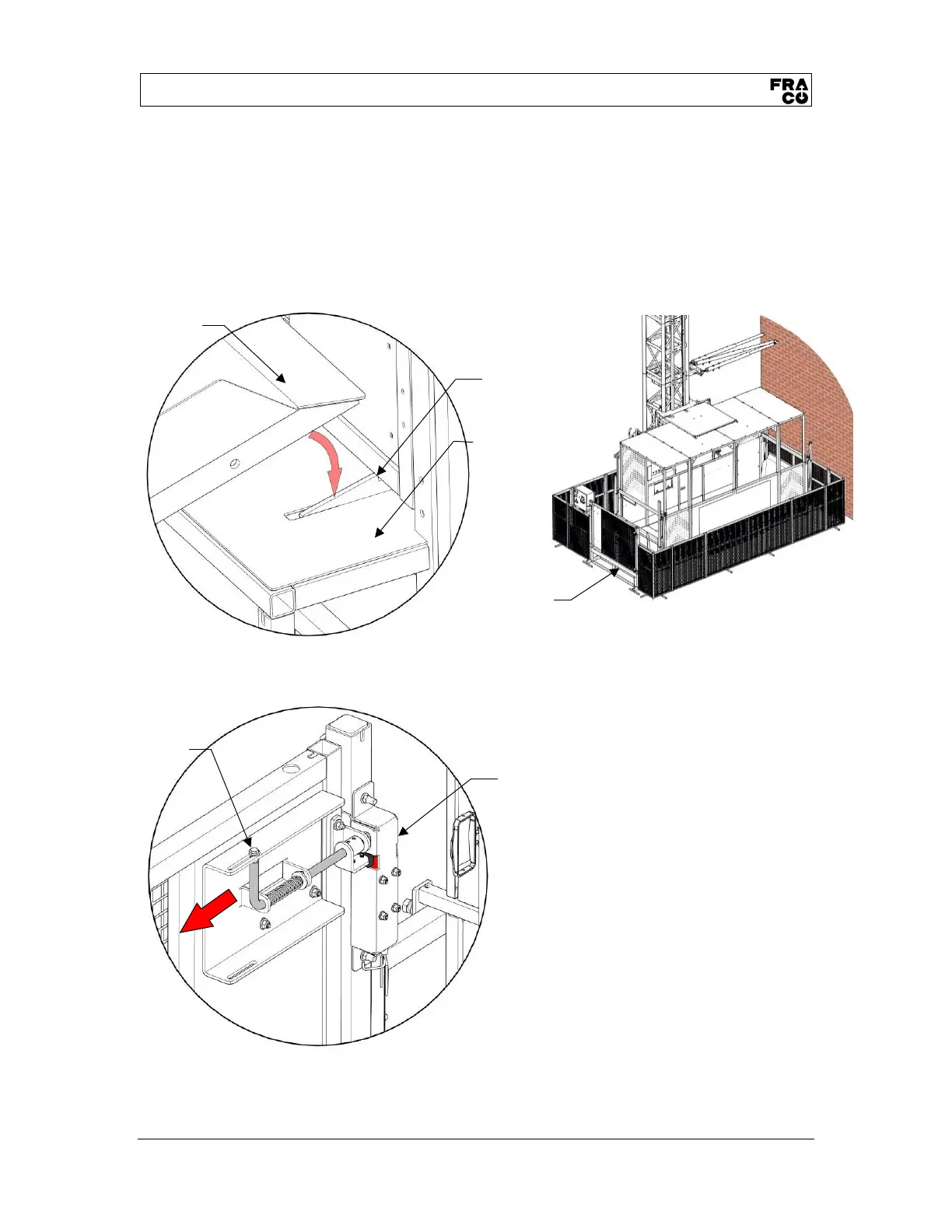

Figure 28 – Mechanical lock, ground enclosure
Once the interlock device and the mechanical lock are unlocked, it is possible to open the door.
Pull on the spring handle and open/close the door
Figure 29 - Interlock, ground enclosure
