12.5. Adjustable ground base technical sheet
Ground base with mast 26" x 26" (14050011)
Imperial
Metric
A
Length (base)
3’-1 1/2"
0,95 m
B
Width (base)
2’-6 5/8"
0,77 m
C
Length (base with outriggers)
6’-8 1/2"
2,00 m
D
Width (base with outriggers)
3’-3 5/8"
1,00 m
E
Height
15"
0,38 m
Weight (base)
255 lb
115 kg
Weight (base with outriggers)
475 lb
215 kg
Table 16 - Ground base weight and dimensions

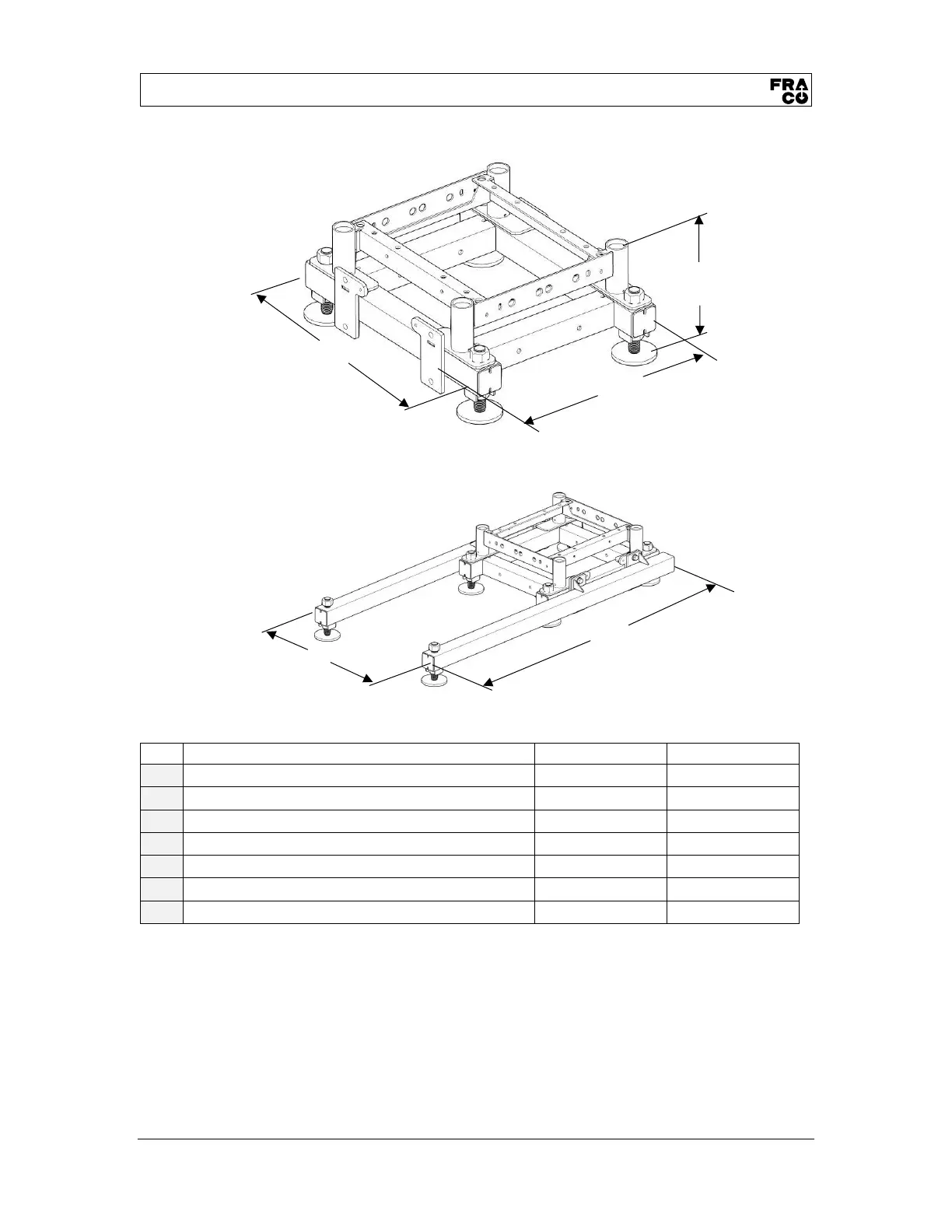

Figure 52 – Adjustable ground base dimensions
E
Figure 53 – Ground base dimensions with installation outriggers
A
B
C
D
