Transport platform SEP Serie
SEP user’s manual Page 26 of 89 Doc no. RD-7243-MA-001-02
Step 3.
Install the finish metal sheets on the side of the motor unit.
N°
Item
Description
1
RD-7243-BC-106
Motor pannel assembly SEP
2
RD-7243-ST-337
Folded flat 0.075" x 4.025" x 4.500" x 14.000"
3
LOZ-5010
Lock washer 1/4" zinc
4
LOZ-5020
Lock washer 3/8" zinc
5
VIS-7107
Button socket cap screw 1/4"-20unc x 3/4" zinc
6
VIS-7159
Button socket cap screw 3/8"-16unc x 1" zinc
7
WAZ-7011
Washer 1/4" SAE zinc
8
WAZ-7021
Washer 3/8" SAE zinc
1
2
7
5
3
8
6
4

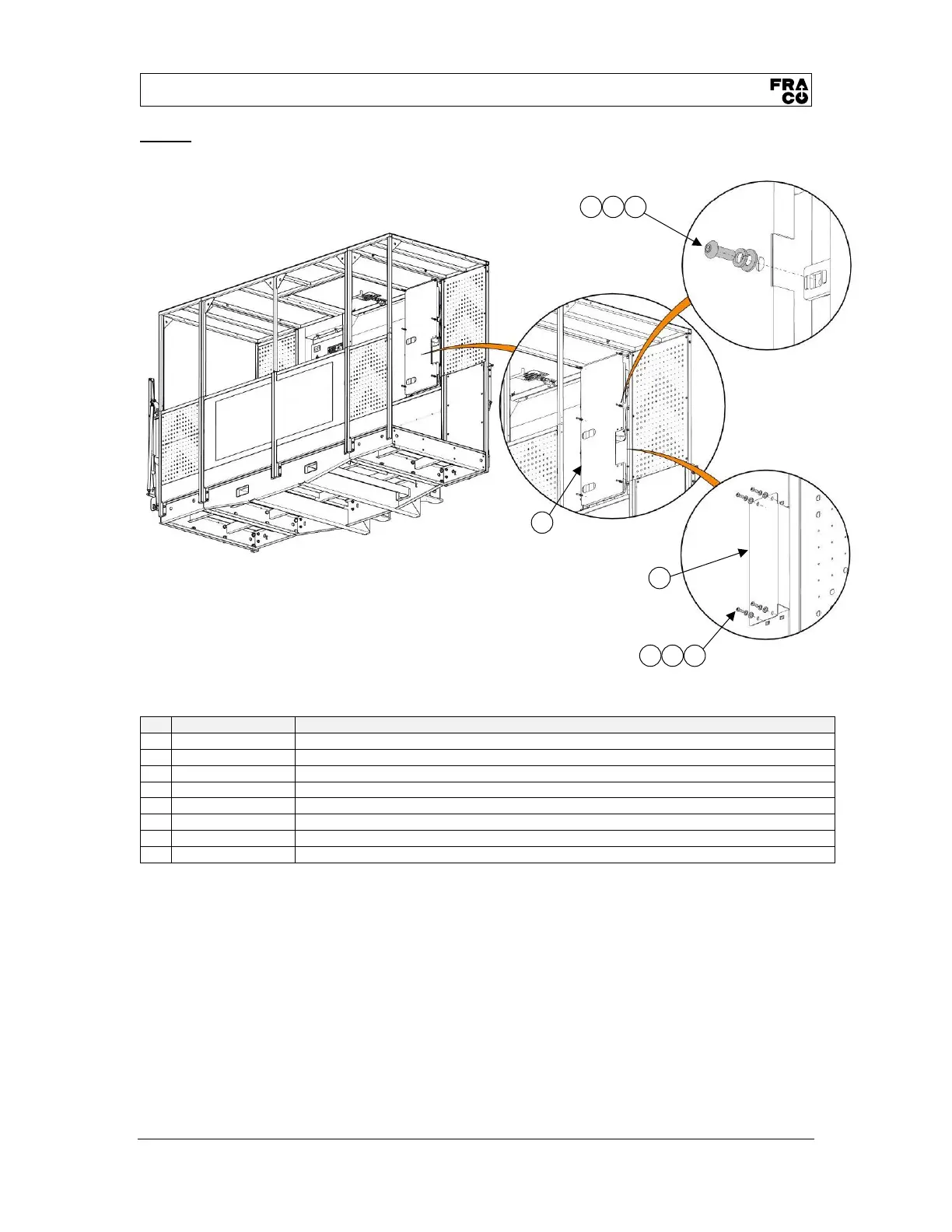

Figure 10 – Roof installation, finish metal sheet
