Fraco SEP-5000 - Ground Protection Mesh (Optional); Figure 13 - Ground Protection Mesh (Example)

Transport platform SEP Serie
SEP user’s manual Page 28 of 89 Doc no. RD-7243-MA-001-02
Dim. Variable
17'-4"
(5,3 m)
11'-3"
(3,4 m)
5'-0"
(1,5 m)
12"
(304 mm)
4.9.3. Ground protection mesh (optional)
The ground protection mesh is mandatory in all cases, except if the platform is equipped with a
impact detection system under the plateform deemed sufficient additional protection
according to effective local laws and regulations (optional system not offered by the
manufacturer). Refer to effective local regulation concerning the ground protection mesh and the
impact detection system.
The ground protection mesh is available, in different formats, to protect and limit access to the
machine. The ground protection mesh must be installed according to the dimensions around the
machine. For details and installation dimension, refer to the installation (RD-7243-MA-002).
∞ REFER TO INSTALLATION MANUAL (RD-7243-MA-002)
The ground protection mesh in ajustable by means of jack feet of 3-1/2" (90 mm) and is available
in (2) heights.
• Reduced height mesh, [ 43" (1,10 m) à 78-3/4" (2,0 m) [ high
• Full height mesh, [ 78-3/4" (2,0 m) et plus [ high
Application standard
• Side A is the ground
platform access point.
(Loading).
• Side B is the level
transfer point.
(Unloading).
Note : Sides A and B may
be inverted as needed
during assembly
• Side C (optional) is linked
to Side A or B during
assembly.
Ground protection mesh
Plateform
Side A
Side B
Side C
Mast

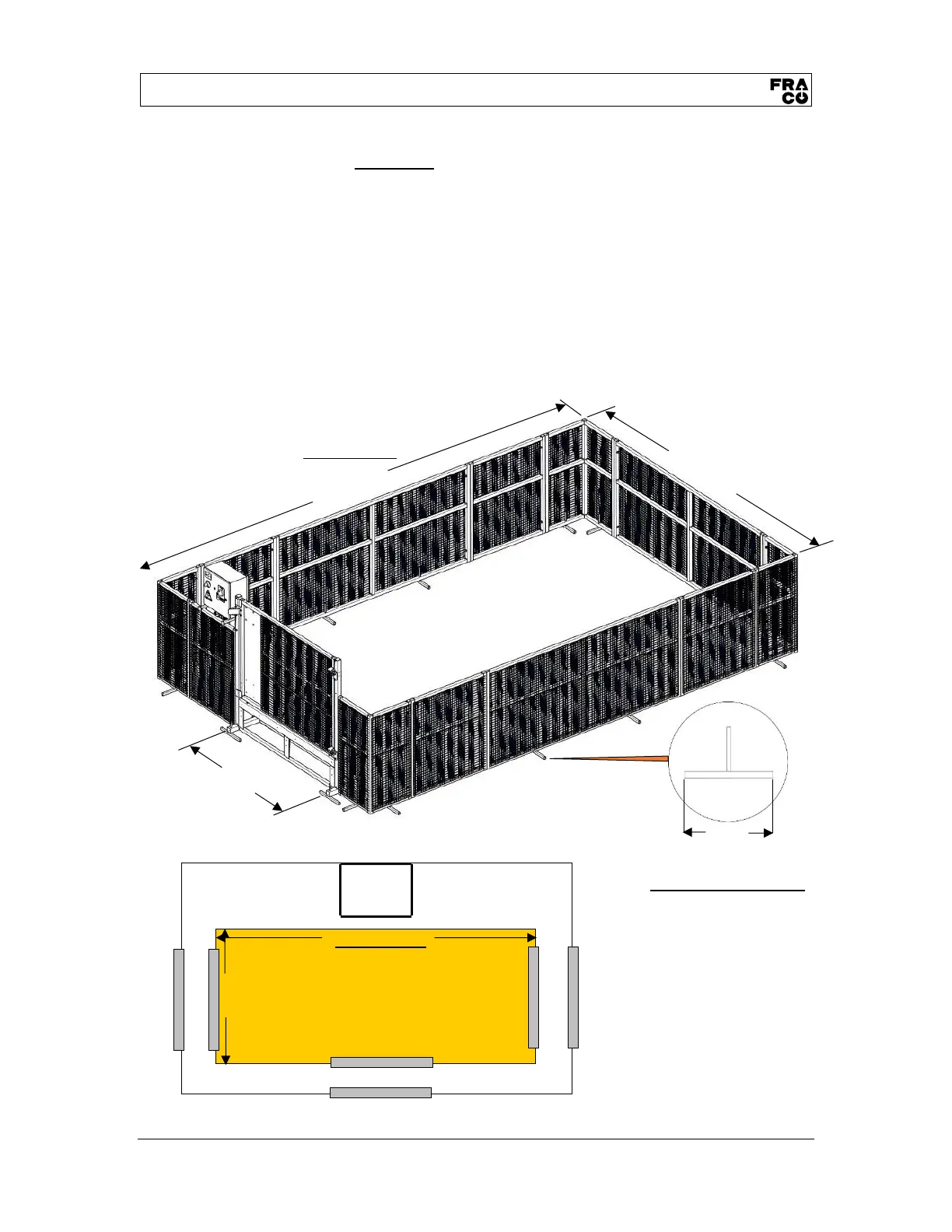

Figure 13 – Ground protection mesh (example)
Variable dim.
13'-2" (4,0 m)
4'-9"
(1,4 m)
