SEP user’s manual Page 57 of 89 Doc no. RD-7243-MA-001-02

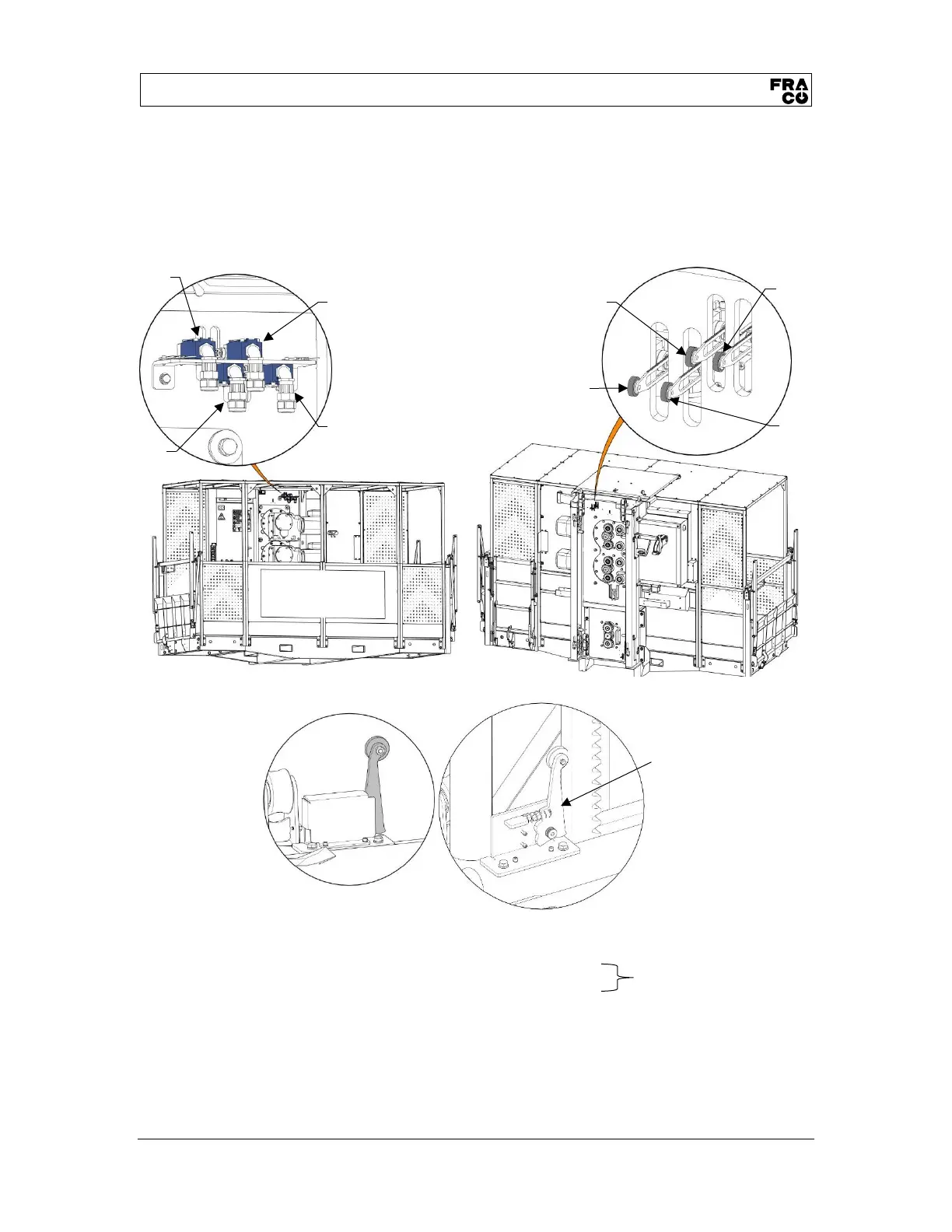

Figure 36 – Limit switch, inside view
Figure 35 – Limit switch, outside view
7.10. Limit switches (level detector)
Level detector is supported by the limit switch system and detectors. For more information on the
installation of the detectors, refer to the INSTALLATION MANUAL (RD-7243-MA-002).
List and functions of the limit switch:
1. (LS5) Limit switch "stop UP": stops ascension of the platform
2. (LS6) Limit switch "stop DOWN": stops descent of the platform
3. (LS7) Position switch: detects the direction of the platform movements.
4. (LS15) Final switch: Detects when platform reaches high and low EXTREME limits along the
mast.
5. (RD-7243-ME-122) Final UP limit detector for end of mast redundancy.
Final switch
(LS15)
Final switch
(LS15)
Fin de course
arrêt HAUT
(LS5)
Limit switch
stop HIGH
(LS5)
Limit switch
stop DOWN
(LS6)
Limit switch
stop DOWN
(LS6)
Position
switch
(LS7)
Position
switch
(LS7)
Unlock doors
Upper, final limit
switch
(RD-7243-ME-122)
Mechanical
redundancy of the
end of mast
inductive detector.
