Framery 2Q - Page 86

Framery 2Q Huddle

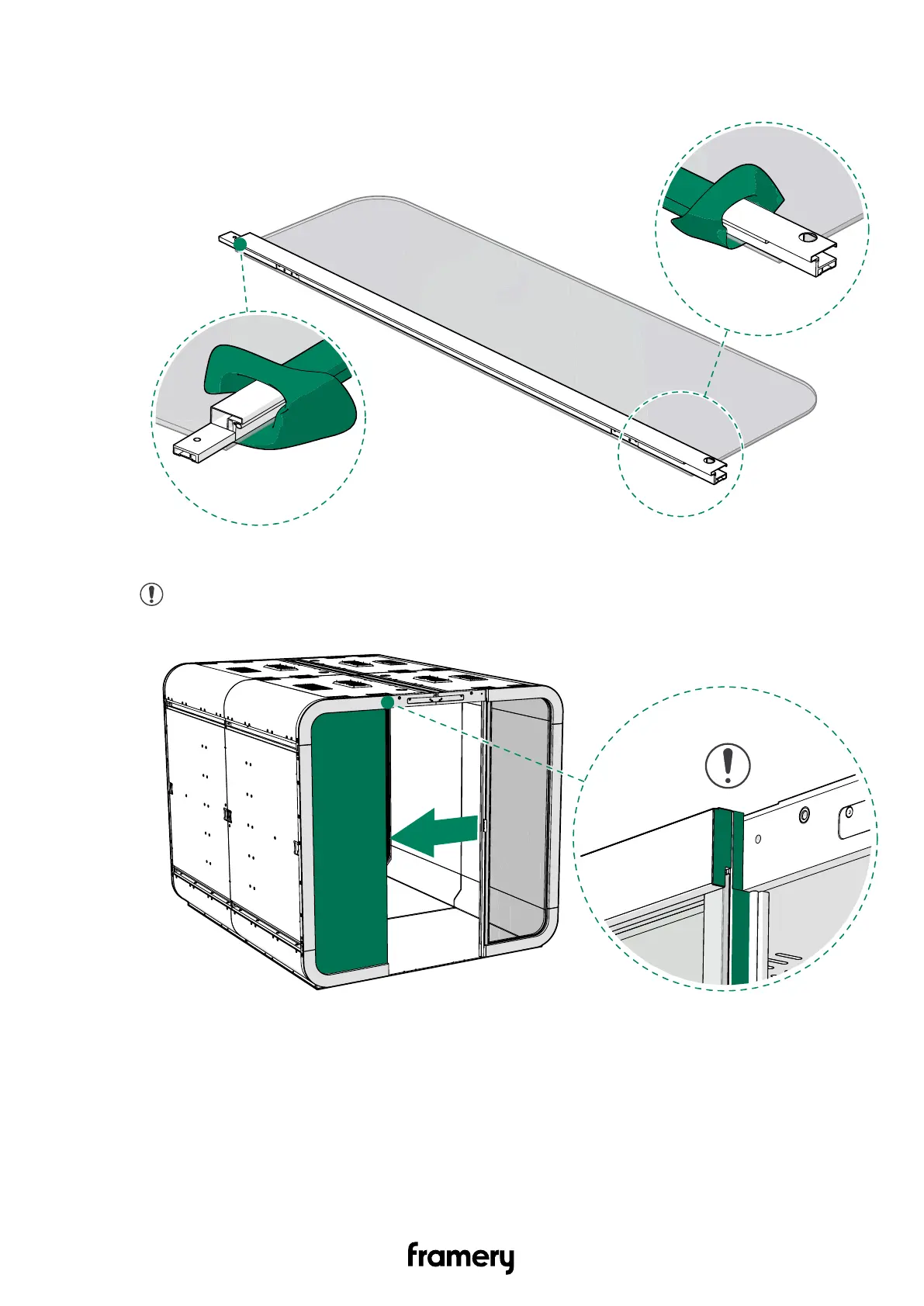

3. Peel back the protective plastic approximately 100 mm (4 in) from the top and bottom
of the aluminum frame of the hinge-side glass.
4. Guide the hinge-side glass into the grooves and slide it into place.
Note: Make sure that the aluminum profile of the glass is level with the corner
frame.
86
Installation instructions
