Rev. 5 – Jun 2020 Page 81 of 91
TECHNICAL DETAILS
1 FLOW CHARTS
CGM

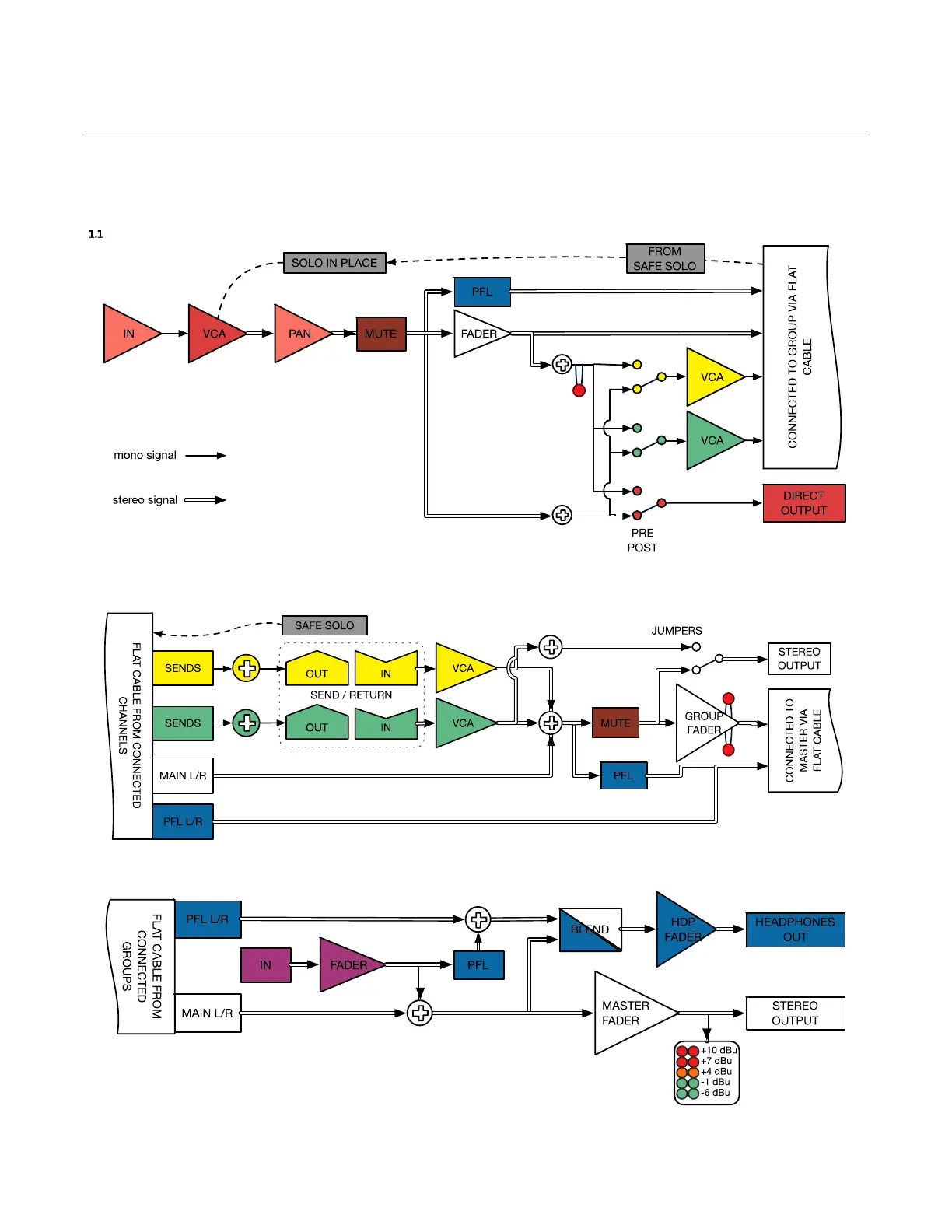

Figure 80: Channel ow chart.
Figure 81: Group ow chart.
Figure 82: Master ow chart.
