No. Function
(2) WLAN LED
-
Flashing green: Fronius Datamanager 2.0 is in Service mode
(IP switch on the Fronius Datamanager 2.0 plug-in card is in posi-
tion A or Service mode has been activated via the inverter display,
the WLAN access point is open)
-
Lights up green: WLAN connection established
-
Flashing green/red (alternately): WLAN access point has timed out
following activation (1 hour)
-
Lights up red: no WLAN connection
-
Flashing red: faulty WLAN connection
-
Does not light up: Fronius Datamanager 2.0 is in Slave mode
(3) Solar.web connection LED
-
Lights up green: Fronius Solar.web connection established
-
Lights up red: Fronius Solar.web connection is required but has not
been established
-
Does not light up: no connection to Fronius Solar.web is required
(4) Supply LED
-
Lights up green: Fronius Solar Net is providing an adequate power
supply; Fronius Datamanager 2.0 is ready for use.
-
Does not light up: insufficient or no power supply from Fronius Sol-
ar Net - an external power supply is required
or
the Fronius Datamanager 2.0 is in Slave mode
-
Flashing red: update in progress
IMPORTANT! Never interrupt the power supply while an update is
in progress.
-
Lights up red: update failed
(5) Connection LED
-
Lights up green: connection established within Fronius Solar Net
-
Lights up red: connection within Fronius Solar Net interrupted
-
Does not light up: Fronius Datamanager 2.0 is in Slave mode
(6) LAN connection
Ethernet interface, colour-coded blue, for connecting the Ethernet
cable

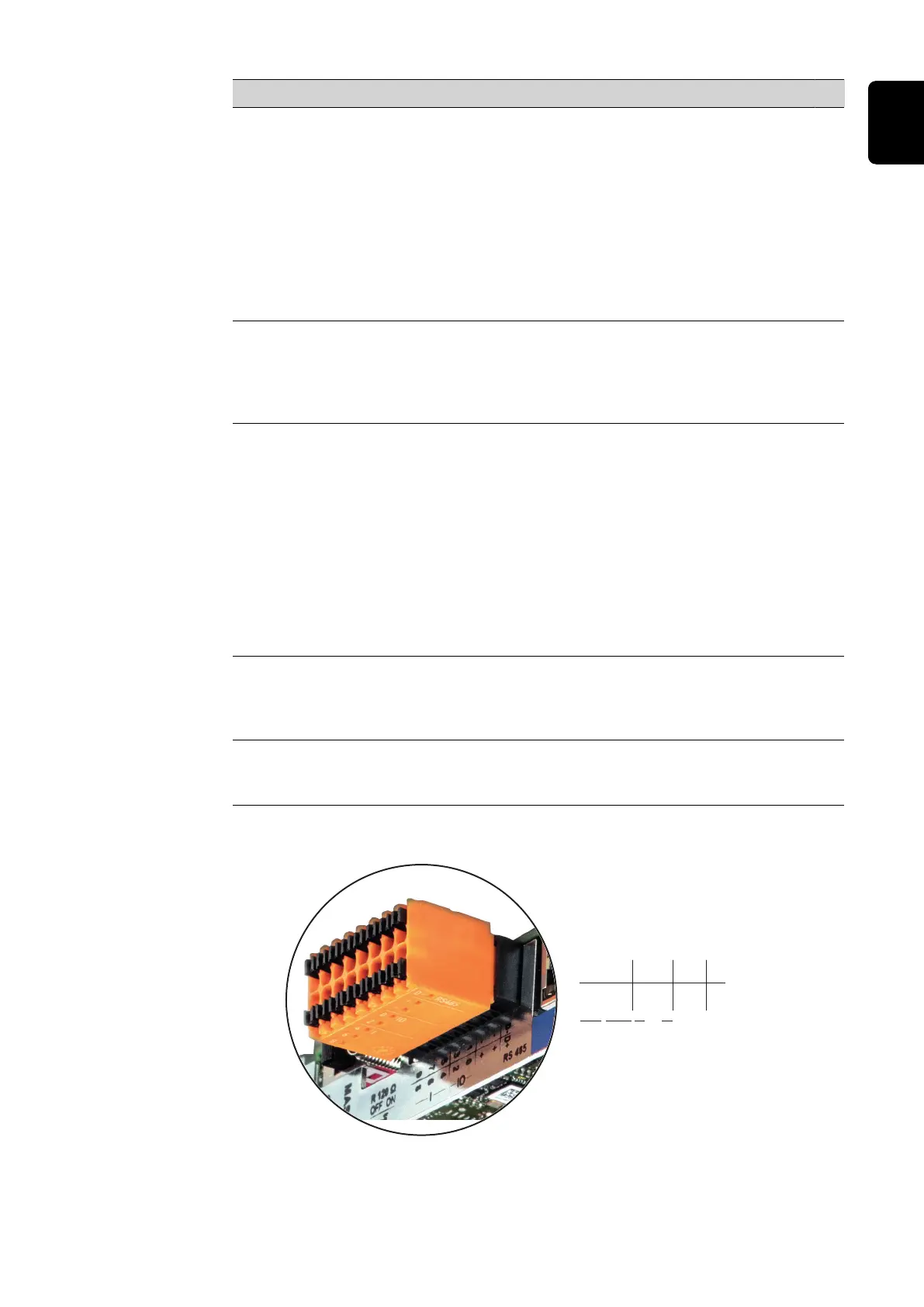

(7) I/Os
Digital inputs and outputs
D-
-
-
1
3
5
7
9
D+
+
+
0
2
4
6
8
I IO RS485
25
EN
