Fronius Symo Advanced 10.0-3-M User Manual

Australian Conduits
Tightly sealing
the conduits

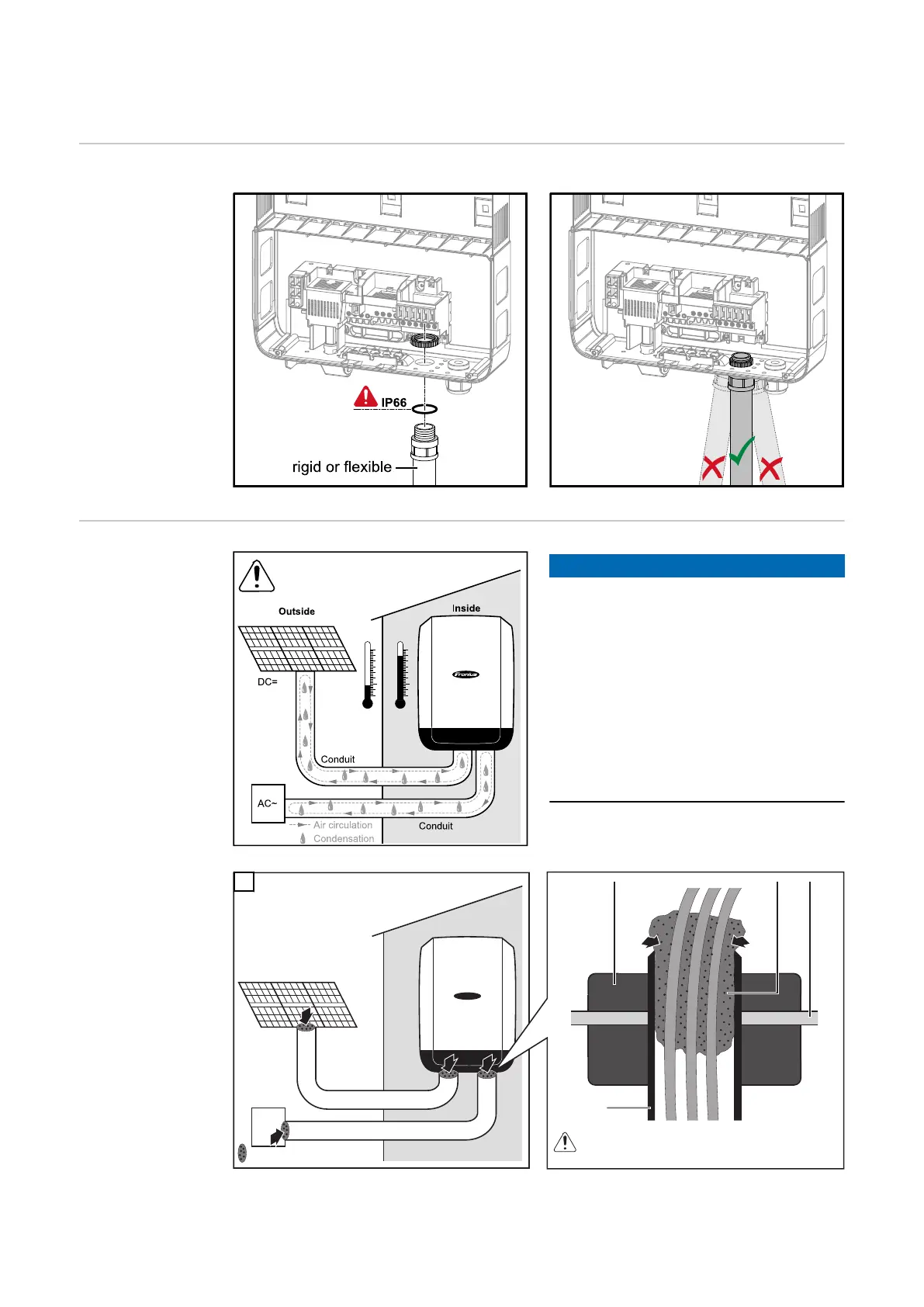

Ensure that the conduits are tightly sealed.
Seal conduits
NOTE!
Condensation within the conduits can
damage the inverter or components of
the photovoltaic systems.
To avoid undesirable air circulation and
condensation in the conduits:
▶
Seal all conduits being used with a
permanently elastic sealant
▶
Seal every incoming and outgoing
conduit
▶
Seal both conduit ends.
Conduit
Conduit
AC~
Inside
Outside
DC=
4
3
2
Permanently elastic sealant
Seal all used conduits!
Seal every incoming and every outgoing conduit!
Seal both conduit ends!
1
Conduit
Inverter housing
Conduit fitting
Permanently elastic sealant
1
1
1
68

Fronius Symo Advanced 10.0-3-M Specifications

General

AC nominal output	10.0 kW
Max. efficiency	98.1%
MPPT voltage range	200 - 800 V
Number of MPPT	2
Protection class	IP66
Max. output current	14.5 A
THD	< 3%
Max. input voltage	1000 V
Operating temperature range	-25°C - +60°C
Max. apparent AC power	10 kVA
AC nominal voltage	400 V
Power factor (cos φac,r)	1
DC max. power	15, 000 W
Warranty	5 years
Cooling	Fan
