Fronius Symo Advanced 10.0-3-M User Manual

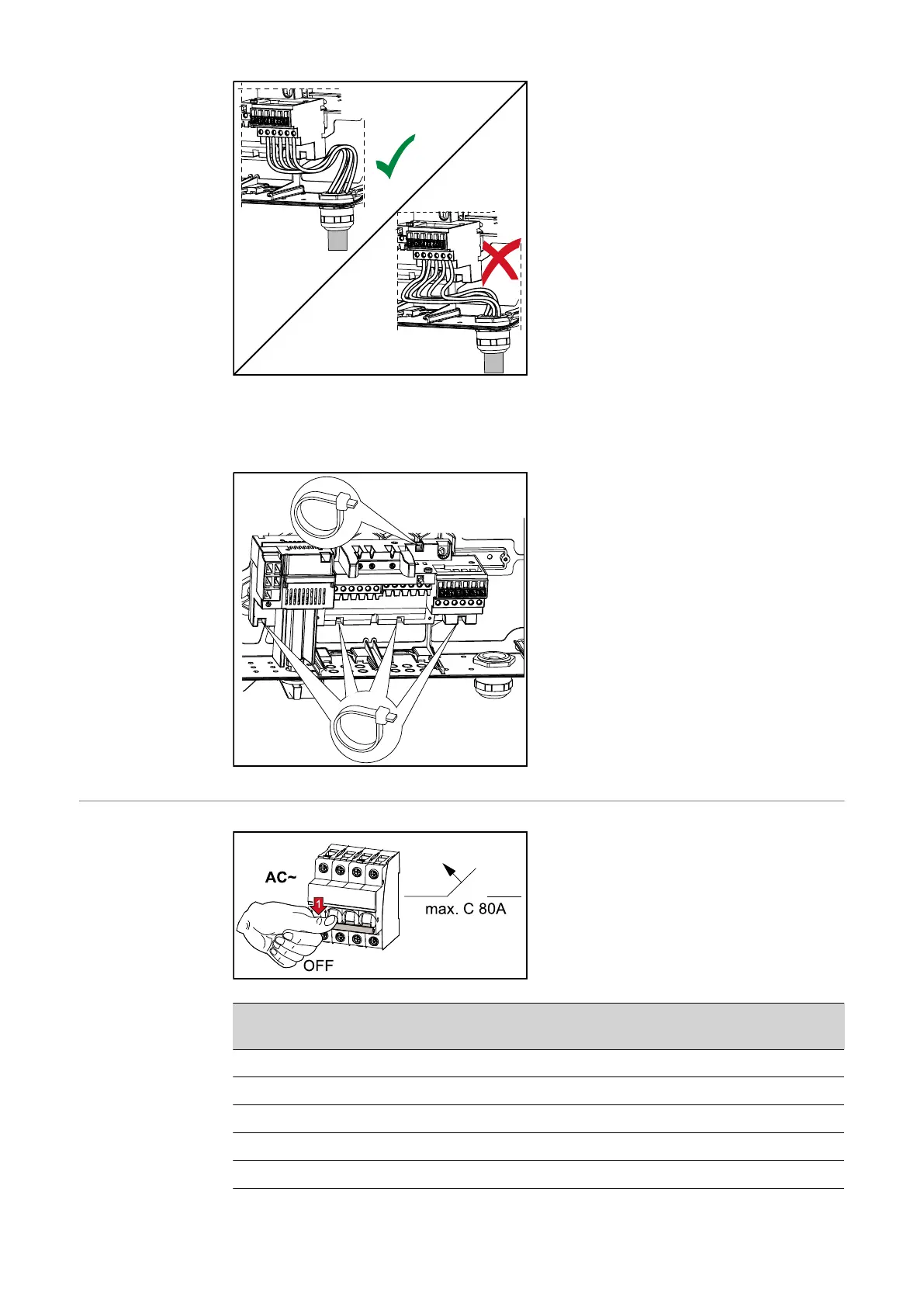

If AC cables are laid over the shaft of
the DC main switch or across the con-
nection block of the DC main switch,
they may be damaged when the invert-
er is swung in or they may even prevent
the inverter from being fully swung in.
IMPORTANT! Do not lay the AC cable
over the shaft of the DC main switch!
Do not lay the AC cable across the DC
main switch connection block or the
AC connection block!
AC cable must not protrude over the
edge of the housing.
If overlength AC or DC cables are to be laid in loops in the connection area, at-
tach the cables with cable ties to the eyelets provided on the top and bottom of
the connection block.
Maximum fuse
rating on altern-
ating current
side
Inverter
Pha
ses AC output
Maximum output overcur-
rent protection
Symo Advanced 10.0-3-M 3 10,000 W C 80 A
Symo Advanced 12.5-3-M 3 12,500 W C 80 A
Symo Advanced 15.0-3-M 3 15,000 W C 80 A
Symo Advanced 17.5-3-M 3 17,500 W C 80 A
Symo Advanced 20.0-3-M 3 20,000 W C 80 A
48

Fronius Symo Advanced 10.0-3-M Specifications

General

AC nominal output	10.0 kW
Max. efficiency	98.1%
MPPT voltage range	200 - 800 V
Number of MPPT	2
Protection class	IP66
Max. output current	14.5 A
THD	< 3%
Max. input voltage	1000 V
Operating temperature range	-25°C - +60°C
Max. apparent AC power	10 kVA
AC nominal voltage	400 V
Power factor (cos φac,r)	1
DC max. power	15, 000 W
Warranty	5 years
Cooling	Fan
