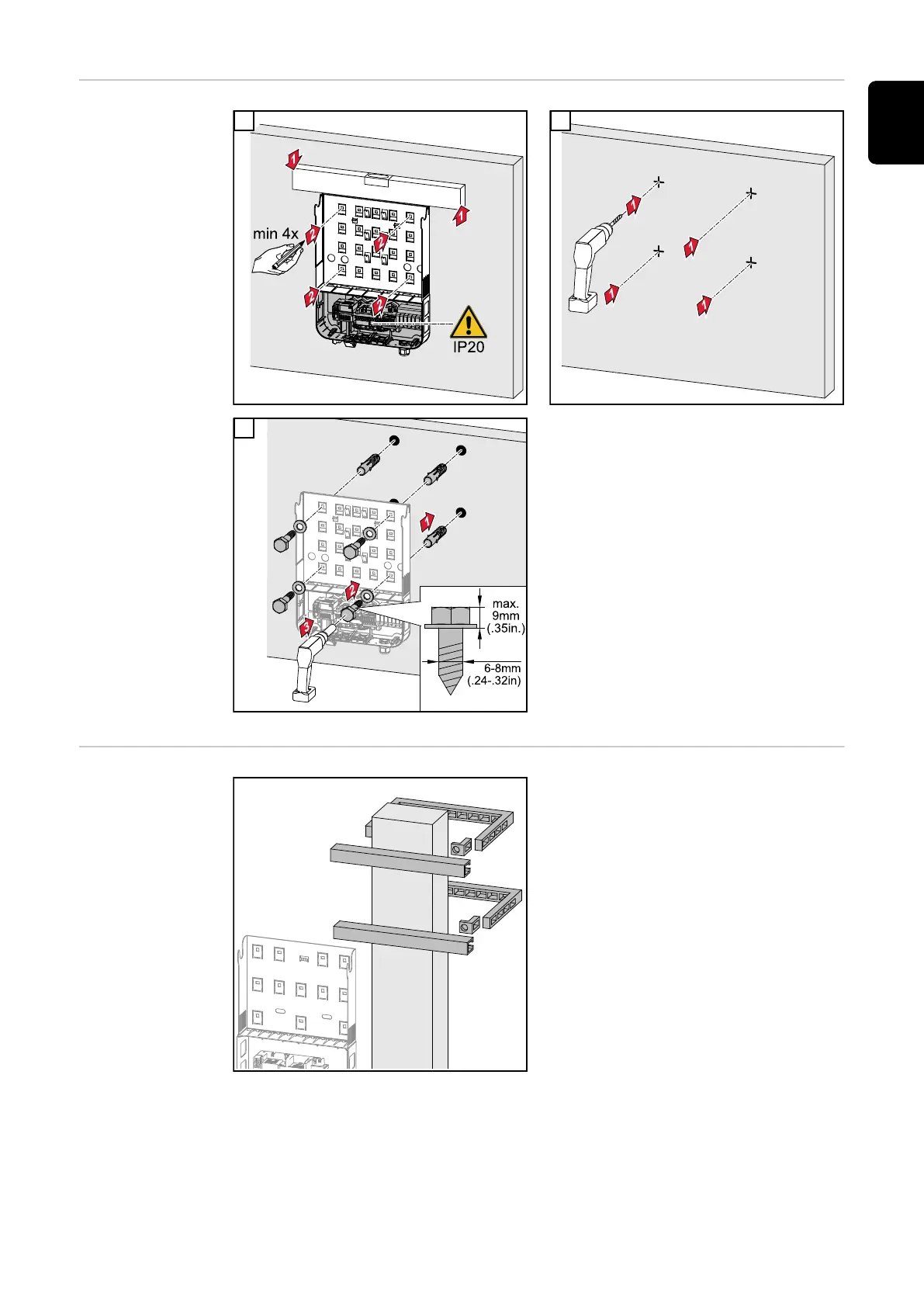

Fitting the
mounting brack-
et to a wall
1 2
3
Installing the
mounting brack-
et on a mast or
beam
When installing the inverter on a mast
or support, Fronius recommends the
"Pole Clamp" kit from Rittal GmbH (or-
der no. SZ 2584.000).
This kit enables the inverter to be in-
stalled on round or rectangular masts
with the following diameters: Æ from
40 to 190 mm (round mast), ÿ from 50
to 150 mm (rectangular mast)
43
EN
