Fronius Symo Advanced 10.0-3-M User Manual

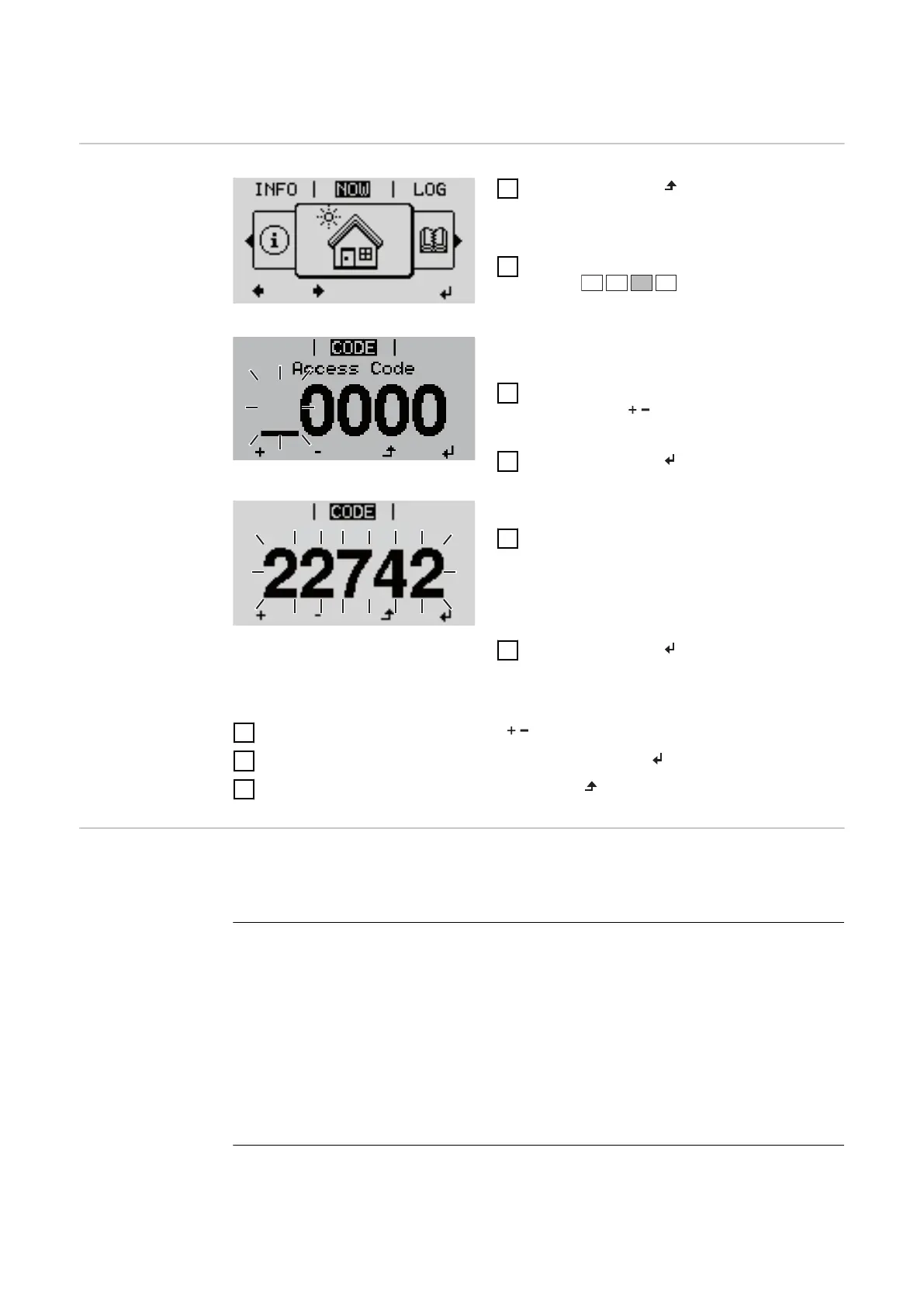

The Basic menu
Access the Basic
menu
1
Press the "Menu” button
The menu level appears.
2
Press the unassigned "Menu / Esc" key
5 times
"Access Code" is displayed in the "CODE"
menu; the first digit starts flashing.
3
Enter the code 22742: Use the "Plus" and
"Minus" keys to select a value for the
first digit of the code
4
Press the "Enter" button
Access Code
The second digit flashes.
5
Repeat steps 3 and 4 for the second,
third, fourth and fifth digits of the access
code until...
the selected code starts flashing.
6
Press the "Enter" button
The Basic menu appears.
7
Use the "Plus" and "Minus" keys to select the desired entry
8
Edit the desired menu item by pressing the "Enter" button
9
Press the "Esc" key to exit the Basic menu
Menu items in
the Basic menu
The Basic menu is used to set the following parameters, which are important
for installing and operating the inverter:
MPP Tracker 1 / MPP Tracker 2
-
MPP Tracker 2: ON / OFF
-
DC operating mode: MPP AUTO / FIX / MPP USER
-
MPP AUTO: normal operating status; the inverter automatically
searches for the ideal operating point
-
FIX: for entering a fixed DC voltage at which the inverter will operate
-
MPP USER: for entering a lower MP voltage above which the inverter
will search for its ideal operating point
-
Dynamic Peak Manager: ON / OFF
-
Fixed voltage: for entering the fixed voltage
-
MPPT start-up input voltage: for entering the start-up input voltage
96

Fronius Symo Advanced 10.0-3-M Specifications

General

AC nominal output	10.0 kW
Max. efficiency	98.1%
MPPT voltage range	200 - 800 V
Number of MPPT	2
Protection class	IP66
Max. output current	14.5 A
THD	< 3%
Max. input voltage	1000 V
Operating temperature range	-25°C - +60°C
Max. apparent AC power	10 kVA
AC nominal voltage	400 V
Power factor (cos φac,r)	1
DC max. power	15, 000 W
Warranty	5 years
Cooling	Fan
