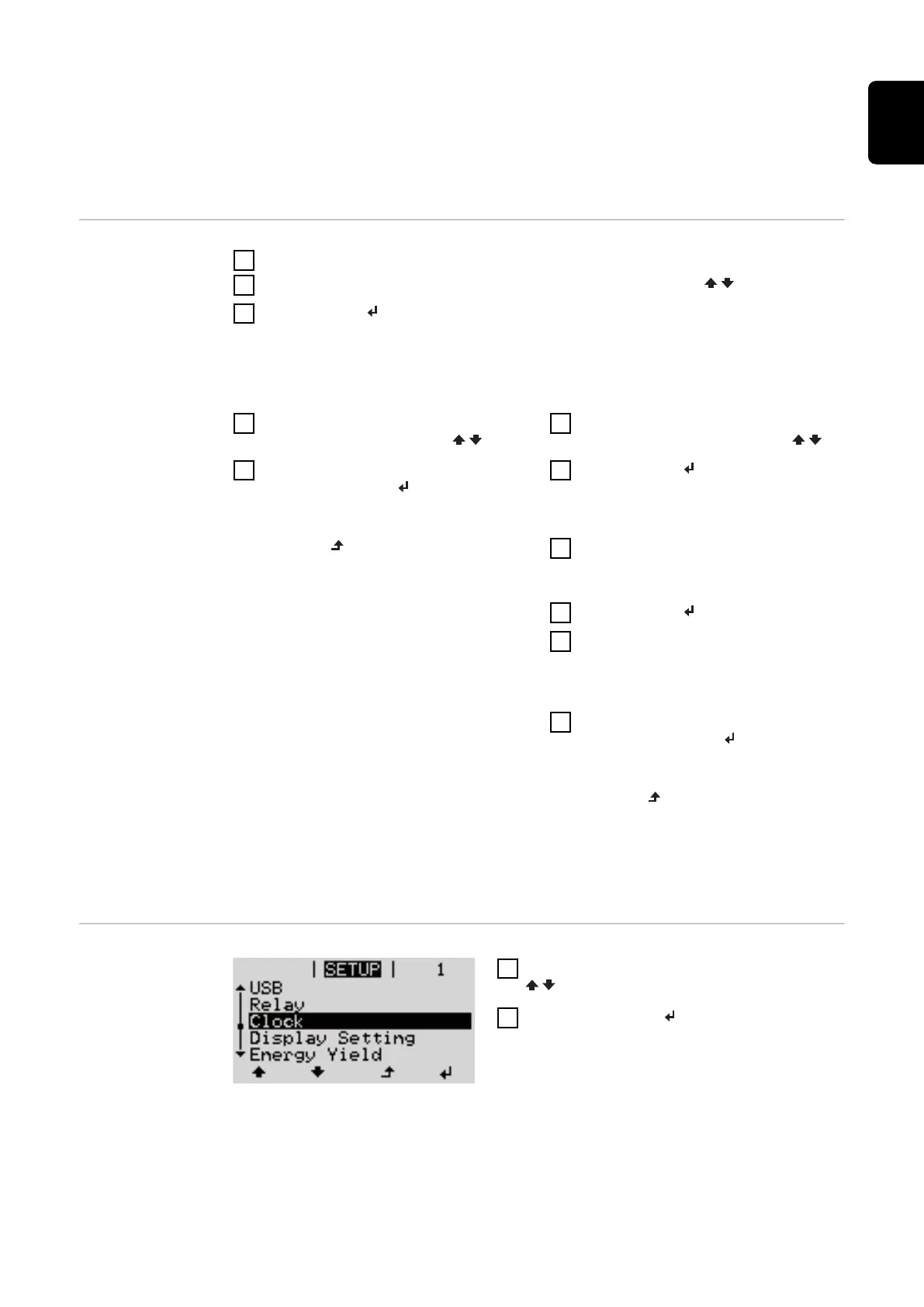

Fronius Symo Advanced 10.0-3-M User Manual

-
The inverter switches from wherever it is on the menu level back to the
"NOW" display mode (exception: "Standby" Setup menu item).
-
The display backlighting goes out unless it has been set to ON in Display Set-
ting - Backlighting (see Display Setting - Backlighting).
-
The power currently being fed in is displayed or the currently active state
code is displayed.
Setting menu
entries, general
1
Open the desired menu
2
Use the 'Up' or 'Down' keys to select the desired menu item
3
Press "Enter"
The available settings are displayed: The first digit of a value to be set
flashes:
4
Use the 'Up' or 'Down' buttons to
select the desired setting
5
Press the 'Enter' key to save and
apply the setting.
To discard the setting, press the
'Esc' key.
4
Use the 'Up' or 'Down' keys to se-
lect a value for the first digit
5
Press "Enter"
The second digit of the value flashes.
6
Repeat steps 4 and 5 until ...
the whole value to be set flashes.
7
Press "Enter"
8
Repeat steps 4 - 6 as required for
units or other values that are to
be set until the appropriate unit
or the value flashes.
9
Press the 'Enter' key to save and
apply the changes.
To discard the changes, press the
'Esc' key.
The currently selected menu item is
displayed.
The currently selected menu item is
displayed.
Application ex-
ample: Setting
the time
1
Select "Clock" from the Setup menu
.
2
Press the "Enter" key
77
EN

Fronius Symo Advanced 10.0-3-M Specifications

General

AC nominal output	10.0 kW
Max. efficiency	98.1%
MPPT voltage range	200 - 800 V
Number of MPPT	2
Protection class	IP66
Max. output current	14.5 A
THD	< 3%
Max. input voltage	1000 V
Operating temperature range	-25°C - +60°C
Max. apparent AC power	10 kVA
AC nominal voltage	400 V
Power factor (cos φac,r)	1
DC max. power	15, 000 W
Warranty	5 years
Cooling	Fan
