Fronius Symo Advanced 10.0-3-M User Manual

Switching off current supply and restarting the
inverter

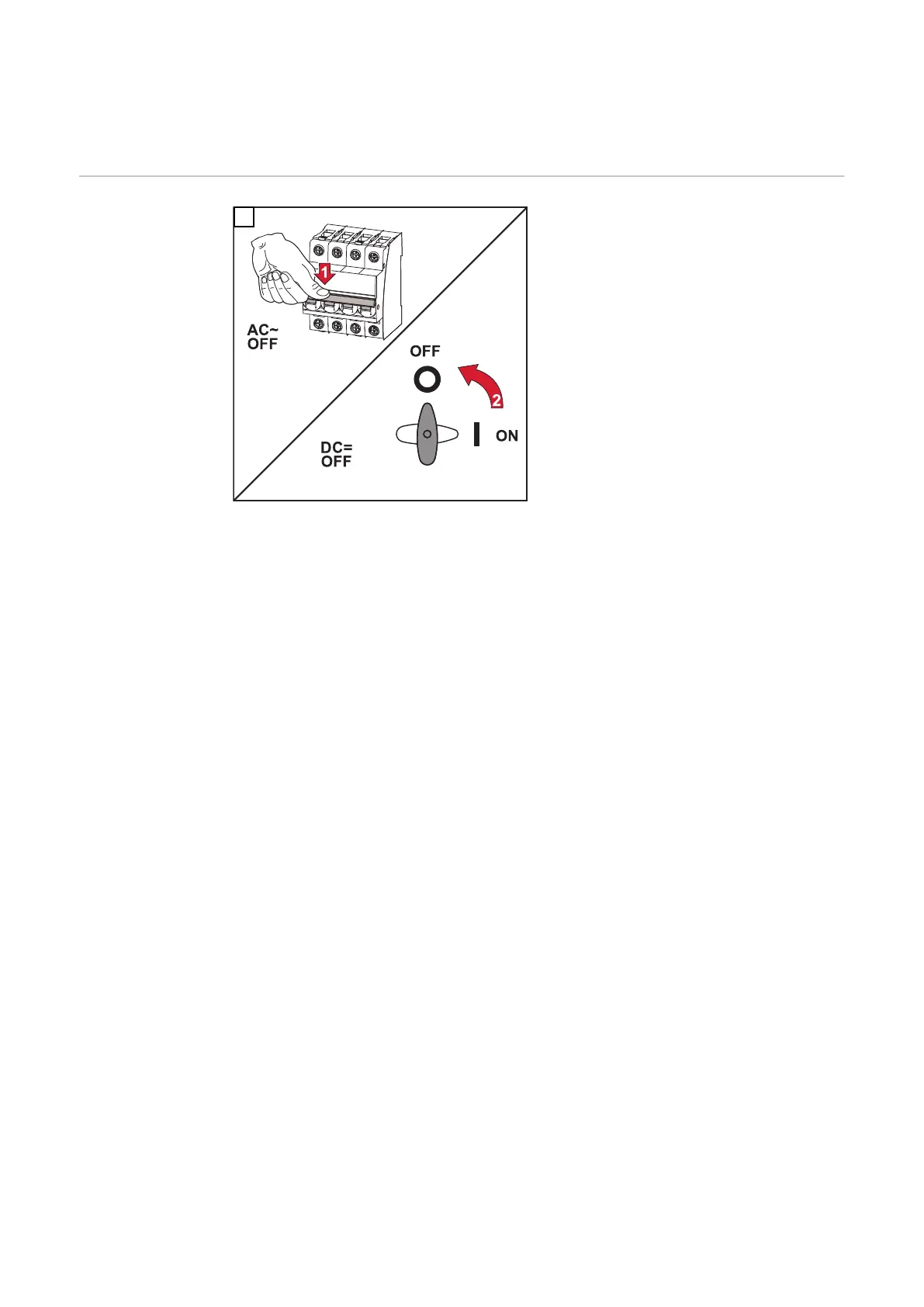

Switching off the
power supply to
the inverter
1
1.
Turn off the automatic circuit
breaker.
2.
Turn the DC disconnector to the
"OFF" switch position.
Switching the inverter on again
1.
Turn the DC disconnector to the "ON" switch position.
2.
Switch on the automatic circuit breaker.
32

Fronius Symo Advanced 10.0-3-M Specifications

General

AC nominal output	10.0 kW
Max. efficiency	98.1%
MPPT voltage range	200 - 800 V
Number of MPPT	2
Protection class	IP66
Max. output current	14.5 A
THD	< 3%
Max. input voltage	1000 V
Operating temperature range	-25°C - +60°C
Max. apparent AC power	10 kVA
AC nominal voltage	400 V
Power factor (cos φac,r)	1
DC max. power	15, 000 W
Warranty	5 years
Cooling	Fan
