Display Power for the display comes from the mains voltage. Depending on the setting
selected in the Setup menu, the display can be kept on all day. (For night mode,
see section Display settings)
IMPORTANT! The display of the inverter is not a calibrated measuring device.
A slight deviation from the utility meter of the energy company is system-re-
lated. A calibrated meter will be needed to calculate the bills for the energy
company.

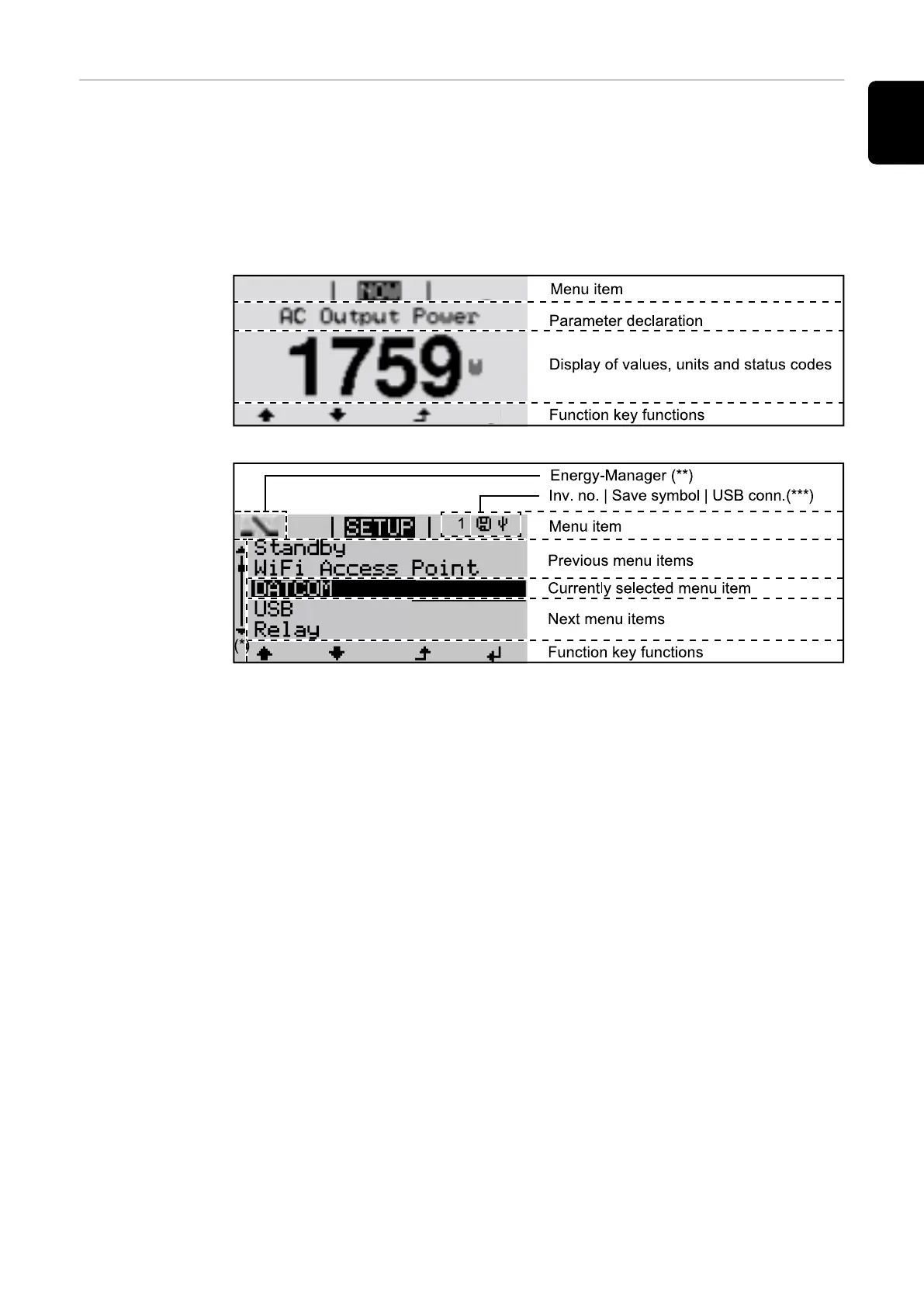

Display areas, display mode
Display areas in Setup mode
(*) Scroll bar
(**) Energy Manager icon
is displayed when the "Energy Manager" function is activated
For more information, see section Relay (floating contact switch)
(***) Inv. no. = Inverter DATCOM number,
Save symbol - appears briefly while set values are being saved,
USB connection - appears if a USB flash drive has been connected
31
