Fronius Symo Advanced 10.0-3-M User Manual

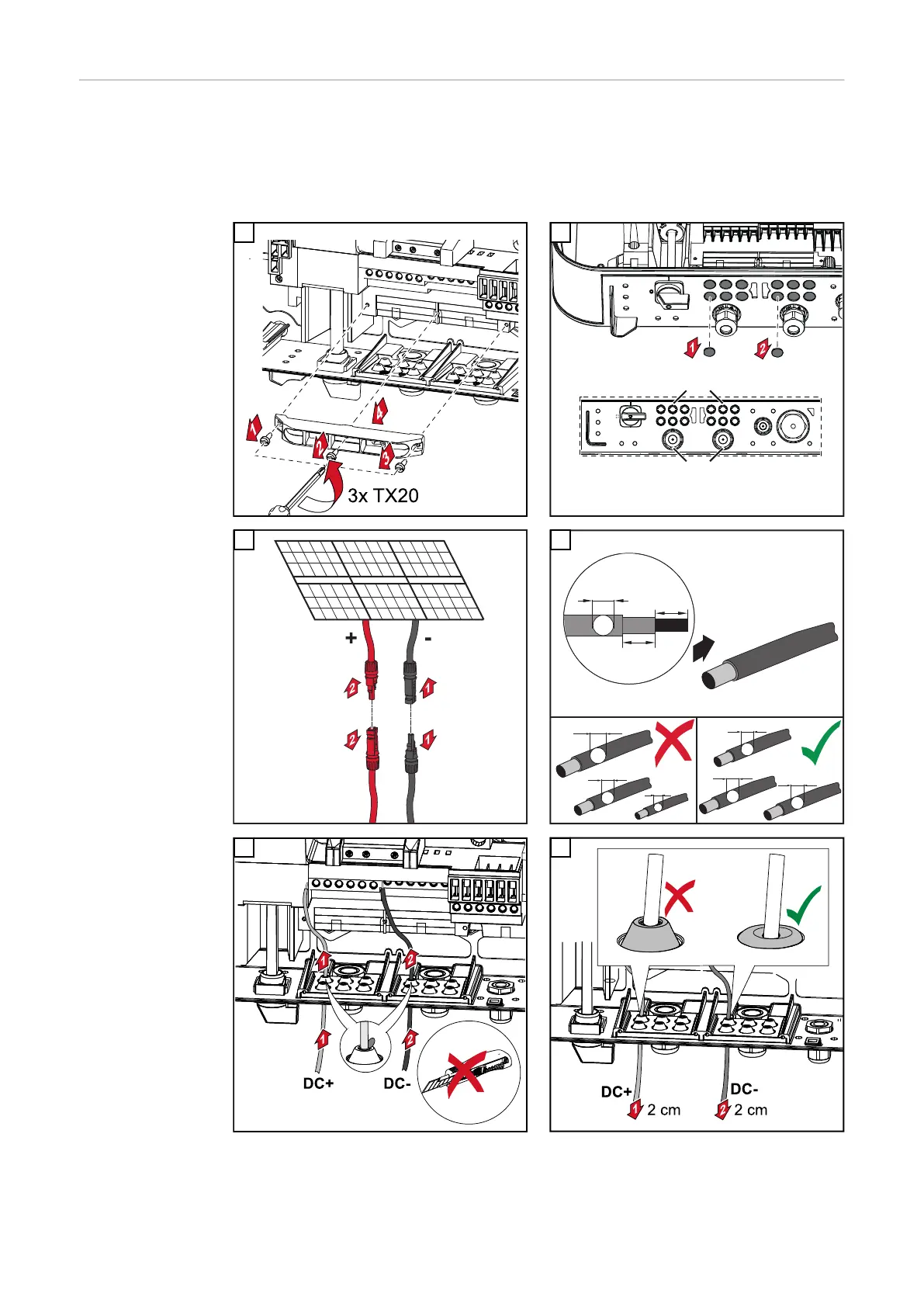

Connecting the
solar module
strings to the in-
verter
IMPORTANT! Only break out as many target break points as the number of
cables that are provided (e.g. if there are 2 DC cables, then break out 2 recesses).
IMPORTANT! Fronius Eco: check the string fuses used (type and rating) before
connecting the solar module strings to the inverter.
1
2.5 - 10 mm²
10 – 25* / 35* mm²
DC Con Kit 25 = 25 mm²
DC Con Kit 35 = 35 mm²
*
2
3
D1
D2
D3
D1
D1
D1
15 mm
70 mm
D > 6 mm
min. 70 °C / 167 °F
4
5 6
56

Fronius Symo Advanced 10.0-3-M Specifications

General

AC nominal output	10.0 kW
Max. efficiency	98.1%
MPPT voltage range	200 - 800 V
Number of MPPT	2
Protection class	IP66
Max. output current	14.5 A
THD	< 3%
Max. input voltage	1000 V
Operating temperature range	-25°C - +60°C
Max. apparent AC power	10 kVA
AC nominal voltage	400 V
Power factor (cos φac,r)	1
DC max. power	15, 000 W
Warranty	5 years
Cooling	Fan
