10

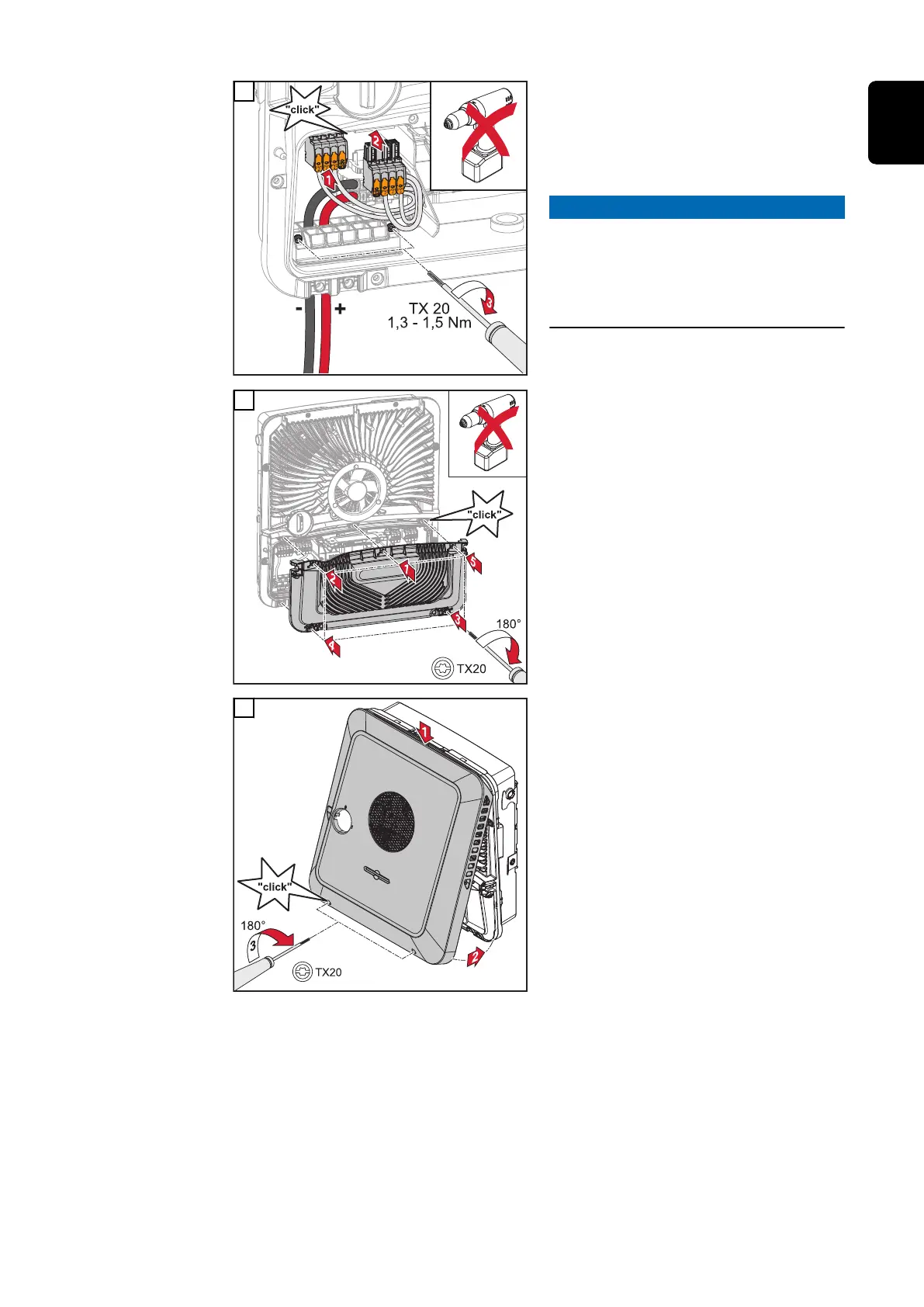

Insert the DC terminals into the re-
spective slot until they engage. Fasten
the screws of the cable guide to the
housing using a screwdriver (TX20) and
a torque of 1.3-1.5 Nm.
NOTE!
Do not use a drill driver as this could
cause overturning.
A possible consequence of overturning
is, for example, damaging the strain-re-
lief device.
11
Place the cover on the connection
area. Tighten the five screws by rotat-
ing them 180° to the right in the indic-
ated order using a screwdriver (TX20).
12
Clip the housing cover onto the invert-
er from above.
Press on the lower part of the housing
cover and tighten the two screws by
rotating them 180° to the right using a
screwdriver (TX20).
