Fronius Symo GEN24 3.0 User Manual

1
2
BAT PE
BAT+
BAT-
3*
1

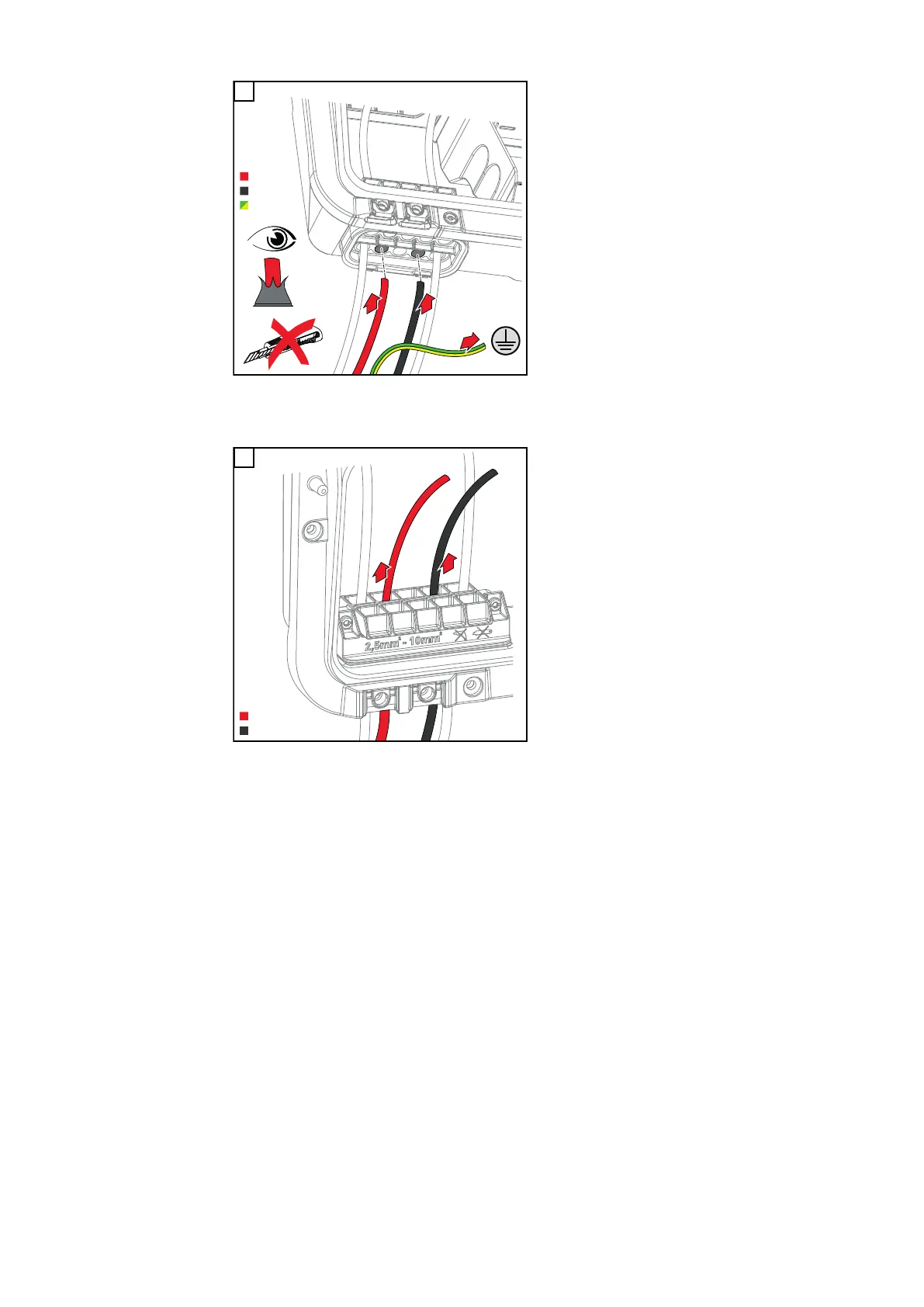

Manually push the battery cables
through the DC bushings.
* The battery ground conductor must
be connected externally (e.g. switch
cabinet). When connecting an LG
RESU FLEX battery, the battery
ground conductor can be connected in
the inverter (see chapter Connecting
the LG RESU FLEX ground conductor
on page 65. Observe the minimum
cross section of the ground conductor
to the battery.
IMPORTANT!
Before stripping the insulation, push
the cables through the DC bushings to
prevent individual wires being bent or
broken.
1
2
BAT+
BAT-
2
62

Fronius Symo GEN24 3.0 Specifications

General

Category	Inverter
Output Power	3.0 kW
Protection Rating	IP66
Max. apparent AC power	3.0 kVA
THD	< 3 %
Number of MPP trackers	2
Max. DC power	4.5 kW
Model	Symo GEN24 3.0
Communication Interfaces	Ethernet, Wi-Fi
AC grid connection	Single-phase
Battery voltage range	40 V - 56 V
Max. charging / discharging power	3 kW
Operating Temperature Range	-25°C - +60°C
