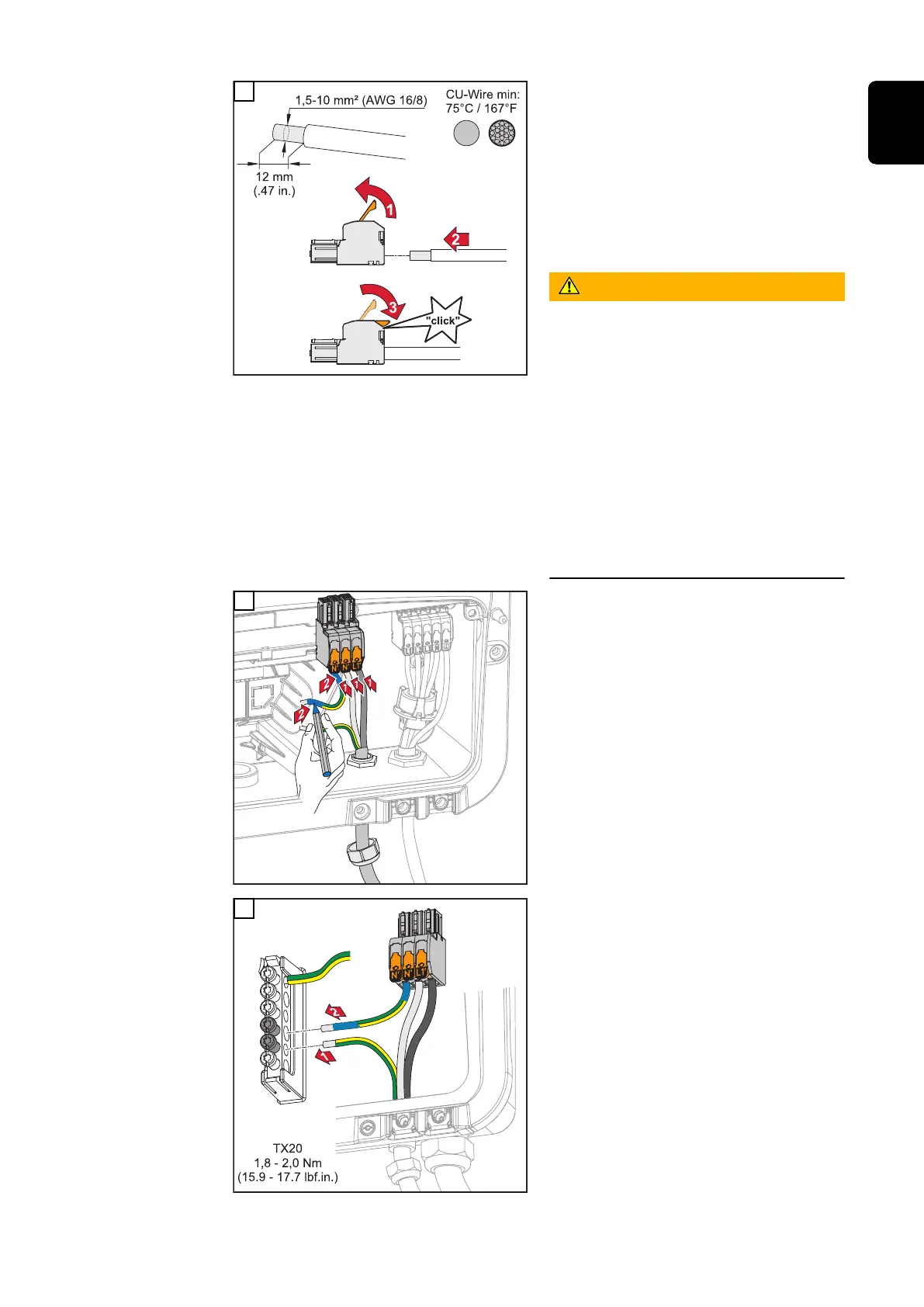

6
Strip the insulation of the single con-
ductors by 12 mm.
The cable cross section must be
between 1.5 mm
2
and 10 mm
2
. Lift to
open the terminal's operating lever and
insert the stripped single conductor in-
to the slot provided, all the way up to
the stop. Then close the operating
lever until it engages.
WARNING!
Danger due to individual conductors in
the terminal that are loose and/or im-
properly connected.
This can result in serious injury and
damage to property.
▶
Only connect one single conductor
in the slot provided for each ter-
minal.
▶
Check that the single conductor is
held securely in the terminal.
▶
Ensure that all of the single con-
ductor is within the terminal and
that no individual wires are sticking
out of the terminal.
7
L1´ Phase conductor
N´ Neutral conductor
N´ PEN conductor
IMPORTANT!The PEN conductor
must be produced with ends that are
permanently marked blue, according
to the national provisions, and have a
cross section of 10 mm².
8
Fasten the ground conductor and PEN
conductor to the ground electrode ter-
minal using a screwdriver (TX20) and a
torque of 1.8-2 Nm.
69
EN
