Fronius TransSynergic 5000 - Fitting Transformer

108
Fitting transfor-
mer
1. Feed transformer leads through
bushing (13)
1. Put transformer (14) in place
1. Loosen 4 screws (7) for secondary
transformer leads on copper sheet
2. Loosen hexagon nut (8) using a size
13 spanner
3. Remove protective element (9) and
throttle lead (10)
4. Loosen 4 screws (11) on the transfor-
mer holder (12)
5. Remove transformer holder (12)
6. Remove transformer with leads
Removing trans-
former
(continued)
(7)
(7)
(8)
(9)
(10)
(11)
(11)

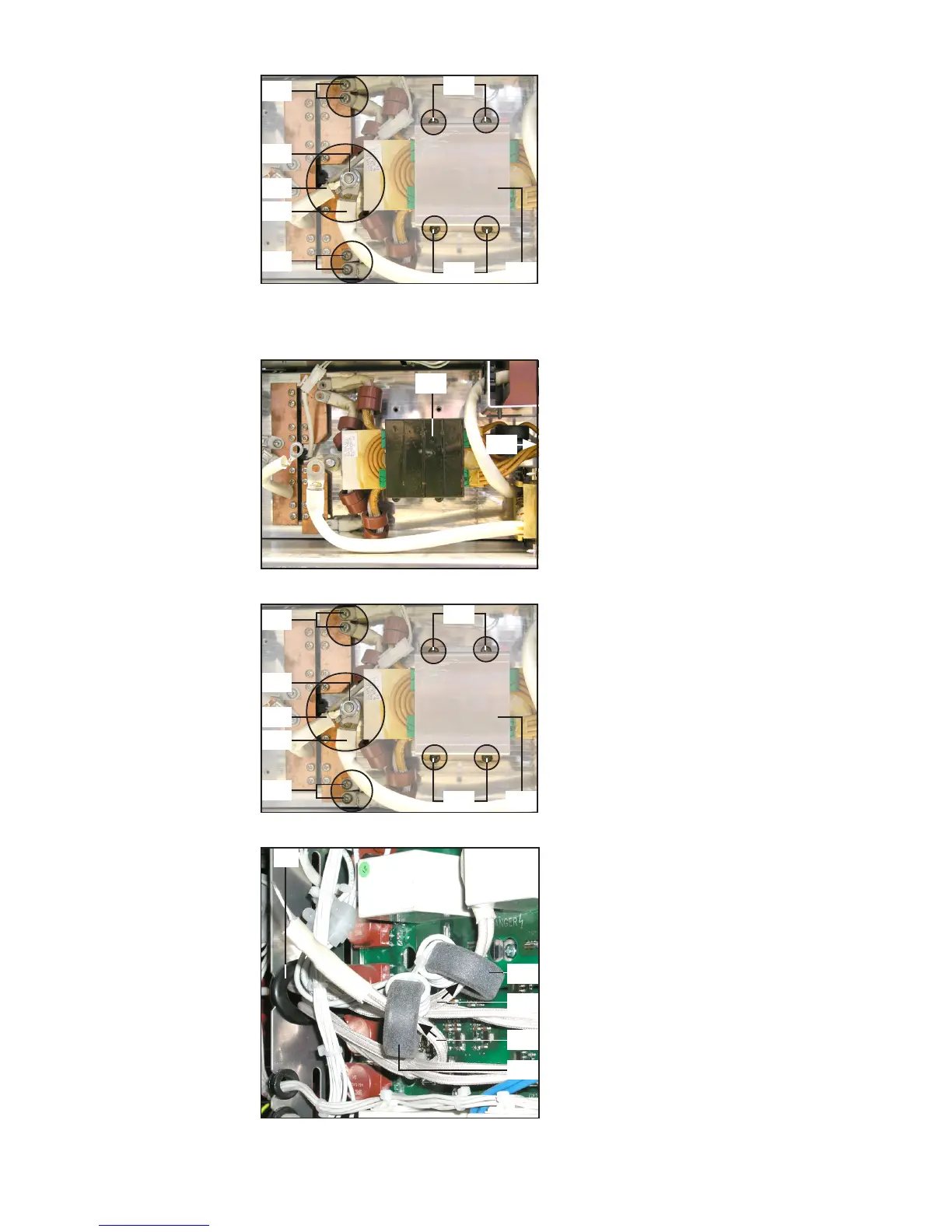

Fig. 4 Removing transformer
(12)
(14)
Fig.5 Putting transformer in place
(13)
(7)
(7)
(8)
(9)
(10)
(11)
(11)
Fig.6 Fitting transformer
(12)
1. Fit transformer holder (12) using 4
screws (11)
2. Using 4 screws (7), fix secondary
transformer leads to copper sheet
3. Using a size 13 spanner, fit protective
element (9) and throttle lead (10) by
means of hexagon bolt (8)
1. Feed primary transformer leads
through bushing (6)
2. Feed primary transformer lead „1+“
through upper ferrite ring (3) from the
inside out
3. Feed primary transformer lead „2+“
through second ferrite ring (4) from
the inside out
(6)
Fig. 7 Feeding through transformer leads
„1+“
(4)
„2+“
(3)
