Fronius TransSynergic 5000 - Changing Transformer (TPS 2700); Removing Transformer

110

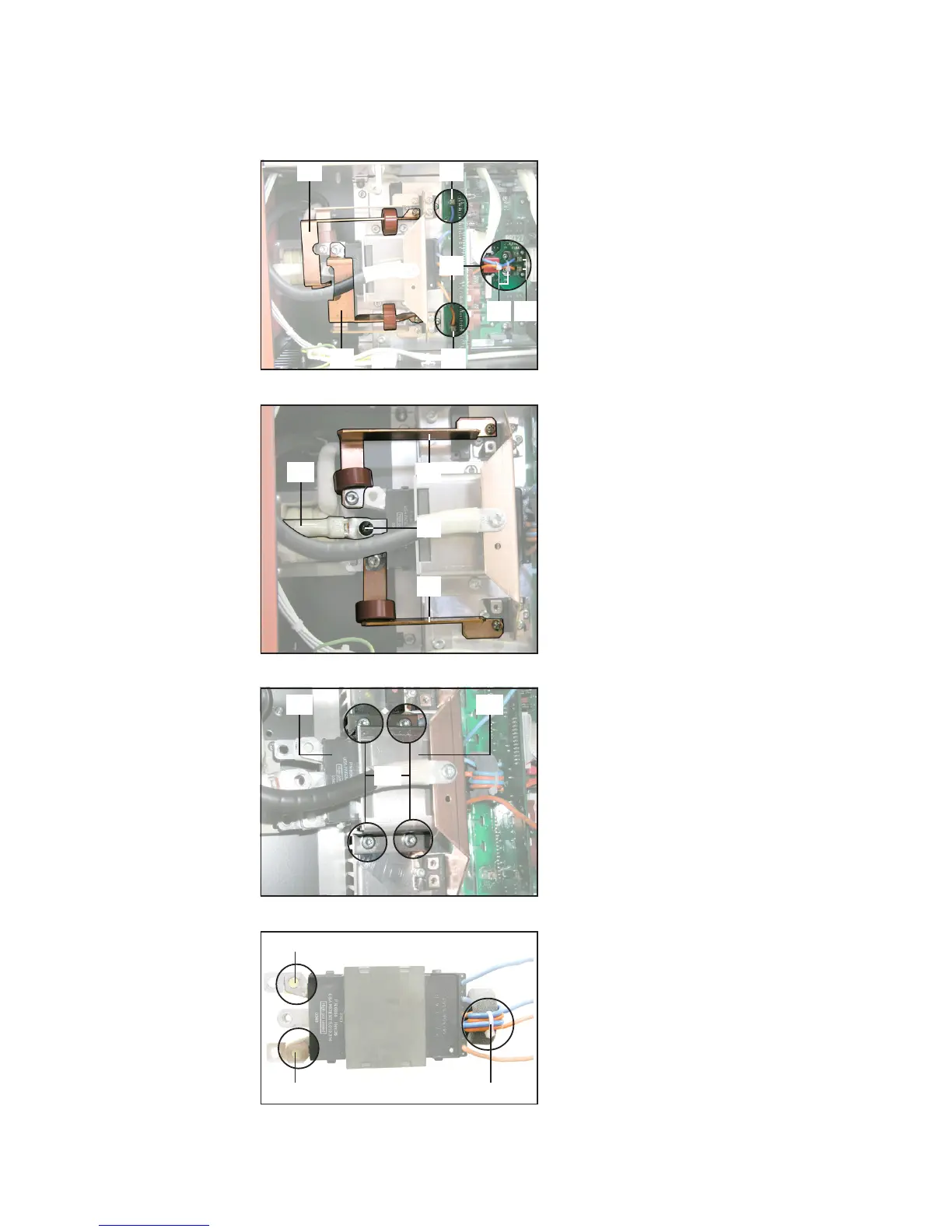

Changing transformer (TPS 2700)
1. Remove side panel
2. Loosen terminal screws (2) and
remove primary transformer leads (3)
3. Cut open cable tie (4)
4. Remove copper clips (5) and (6)
Removing trans-
former
Fig. 1 Exposing transformer 1
1. Remove copper clips (7) and (8)
2. Loosen screw (9) on middle tap
connection and remove throttle lead
(10)
(3)
(4)
(2)
(2)
(2)
(5)
(6)
Fig. 2 Exposing transformer 2
1. Loosen four screws (11) on the
transformer holder (12)
2. Remove transformer holder (12) and
transformer (13) together
(7)
(8)
(9)
(10)
1. Cut open cable tie (14) on ferrite core
and feed out cable
2. Remove insulators (15) from se-
condary connections
(11)
(13) (12)
Fig. 3 Removing transformer
Fig. 4 Removing insulators and ferrite core
(14)(15)
(15)
