Secondary power module TS 4000/5000, TPS 3200/
4000/5000
General remarks On the TS 4000/5000 and TPS 3200/4000/5000, the secondary power module consists
of four diode modules (item number 41,0003,0203), each of which has two integral
diodes.
Component
position in the
machine

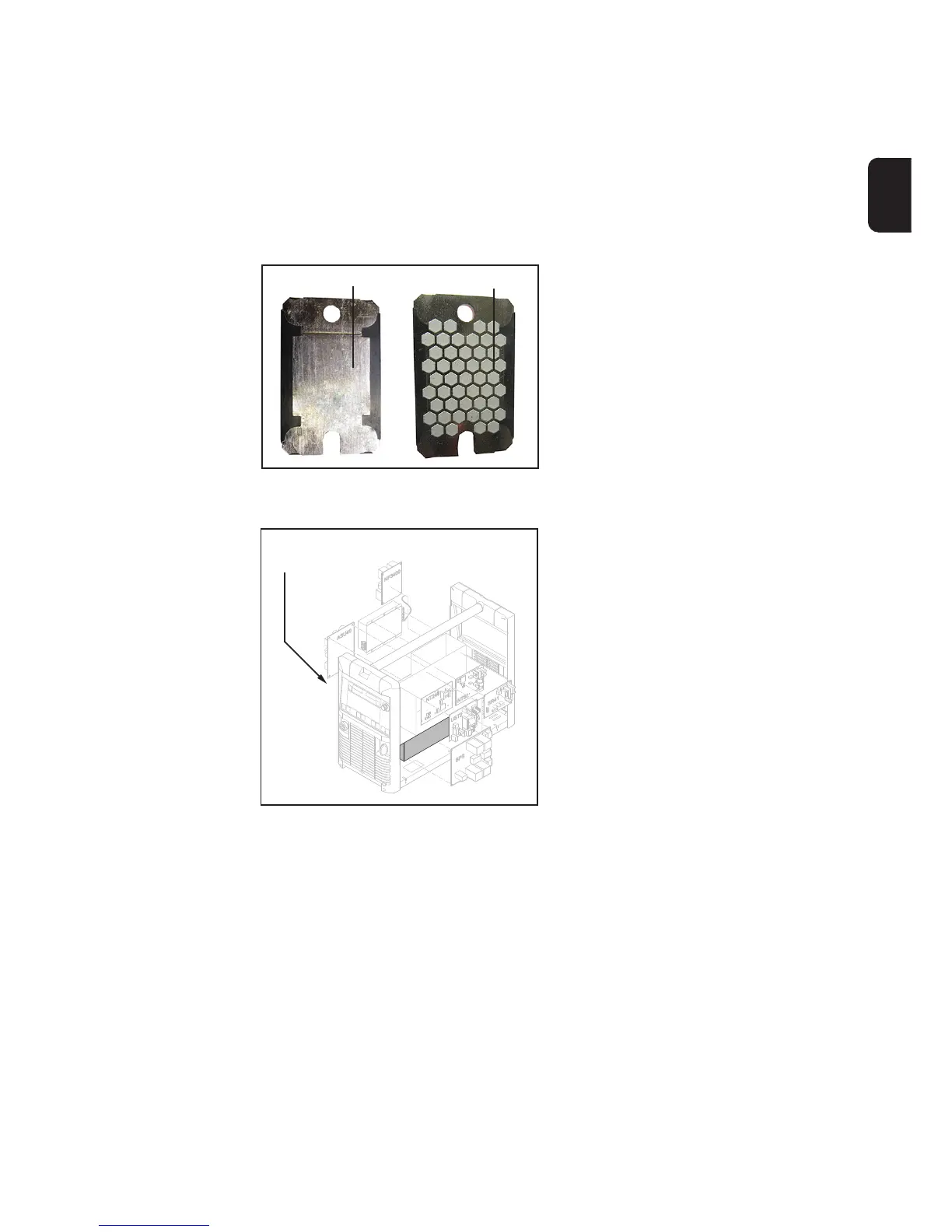

Fig.64 TPS 2700, position of secondary power
module
Secondary power module
(on cooling element)
Important! In the course of replacement,
the diodes must not be interchanged.
(1) Diode modul 41,0003,0203
(2)
(1)
