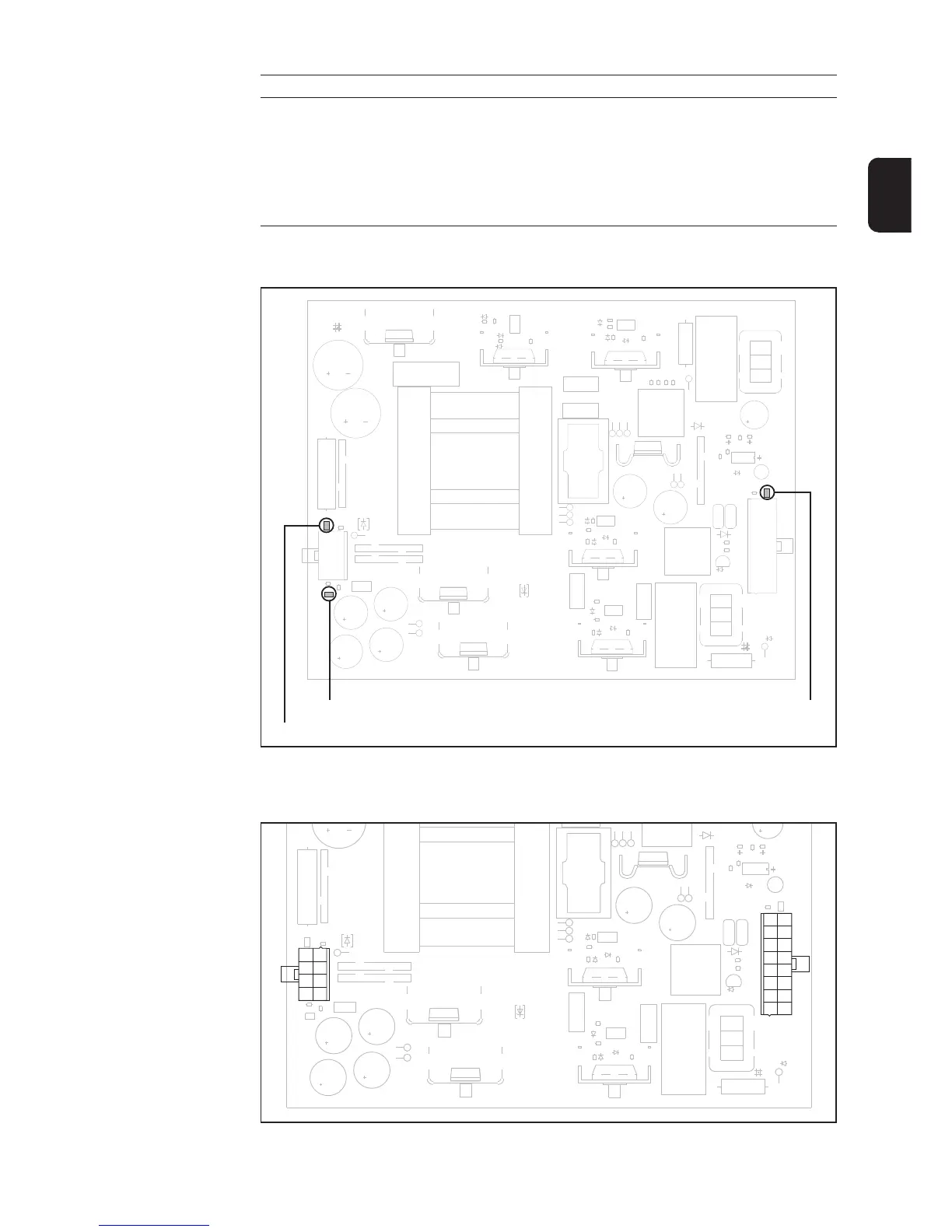

Fig. 28 LED indicators on mains adapter NT 24 A
LED checklist
Measuring points
8
5
6
7
8
1
2
3
4
7
6
5
4
3
2
16
1
15
14
13
12
11
10
9
Plug layout
(continued)
LED 24 V internal LED 15 V primary
LED 24 V external
X2
Fig. 29 Plug X1 and X2 on mains adapter NT 24 A
X1
Pin function
X2 Secondary connection +24 V
Pin 1 +24 V external
Pin 2 NC
Pin 3 Intermediate circuit voltage UZW
Pin 4 +24 V internal
Pin 5 GND EXT
Pin 6 NC
Pin 7 GND UZW
Pin 8 GND INT
