mm indicator
lights up when the Fdb setup parameter has been selected
(7) Mode button
for selecting the mode
2-step mode
4-step mode
Job mode
MMA welding
When a mode is selected, the LED on the relevant symbol lights up.
(8) Right parameter selection button
for selecting welding parameters within the welding parameters overview (10)
When a welding parameter is selected, the LED on the relevant parameter symbol
lights up.
(9) Gas-test button
to set the required shielding gas flow rate on the pressure regulator
After pressing this button, shielding gas flows for 30 seconds. Press the button
again to stop the gas flow prematurely.

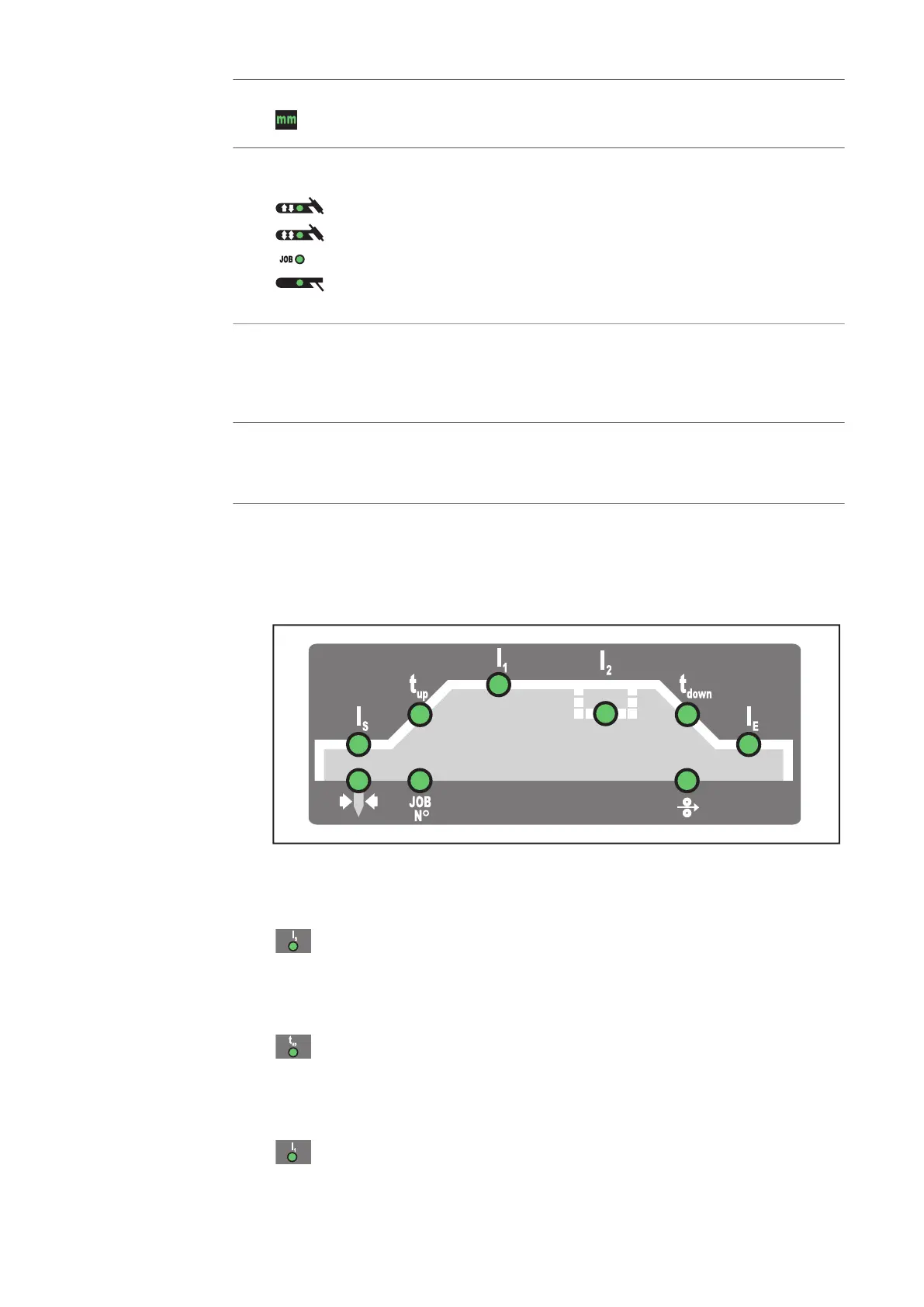

(10) Welding parameters overview
The welding parameters overview contains the most important welding parameters
to be used when welding. The sequence of welding parameters follows a clothes-
line structure. Use the left and right welding parameter selection buttons to navigate
within the welding parameters overview.
Welding parameters overview
The welding parameters overview contains the following welding parameters:
Starting current I
s
for TIG welding
The starting current I
S
is saved separately for the "TIG AC welding" and
"TIG DC- welding" modes.
UpSlope t
up
when TIG welding, the period over which the current is increased from the
starting current I
S
to the specified main current I
1
The UpSlope t
up
is saved separately for 2-step and 4-step modes.
Main current I
1
(welding current)
- for TIG welding
- for MMA welding
