Fujitsu Airstage J-II Series User Manual



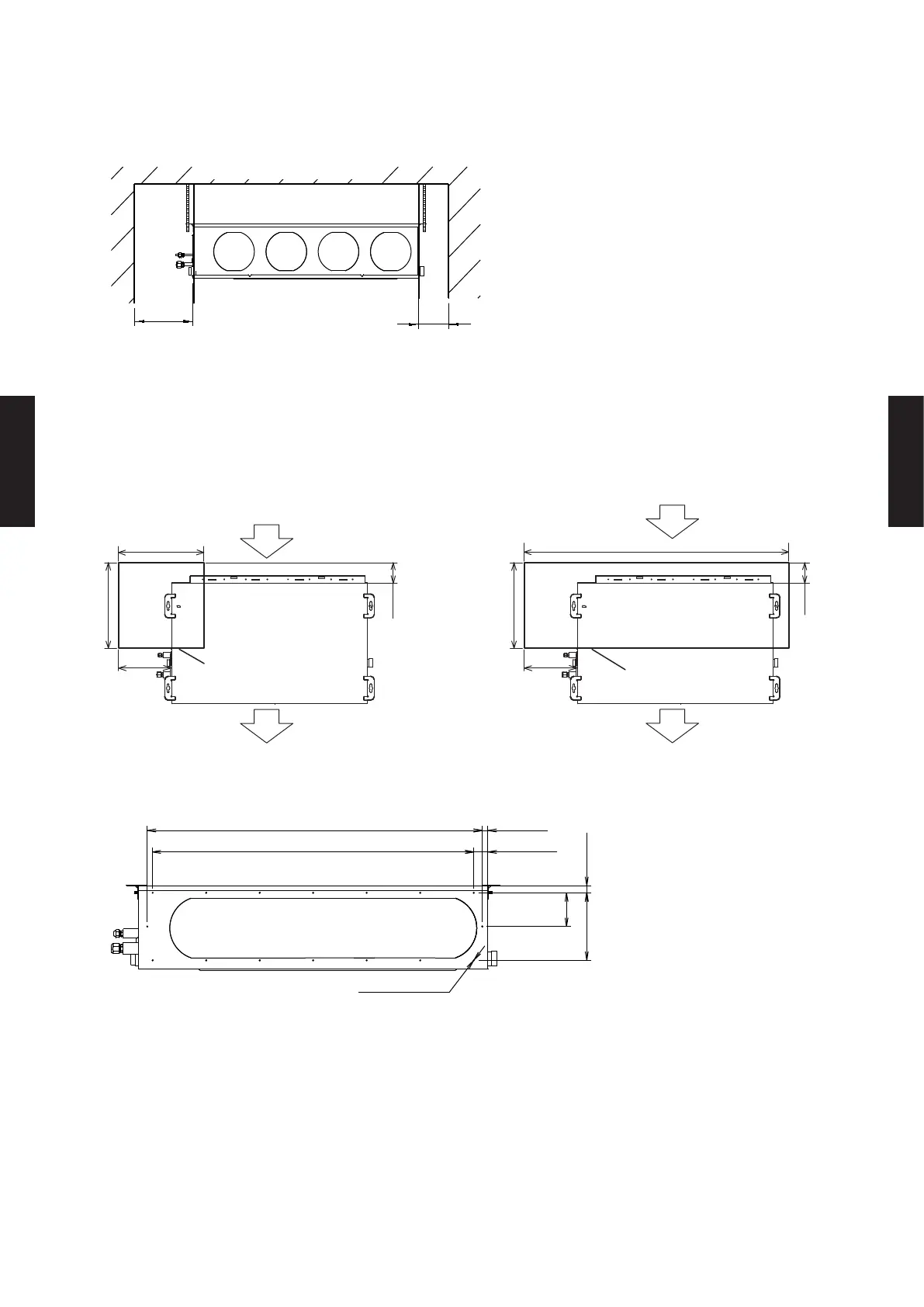

INSTALLATION LOCATION

MAINTENANCE SPACE

WHEN USING A SQUARE DUCT
Unit : in. (mm)
42-7/16 (1078)
1-1/8 (28)
7/8 (23)
4-5/16
(109)
8-5/8 (219)
1-13/16 (46)
P6-7/8 (174) x 6 = 41-1/8 (1044)
Ø 1/8 (3.2) 16 hole
16 (400) or more
6 (150) or more
Strong and durable ceiling
62 (1,550) or more
20 (500)
or more
Air
Air
Air
Air
4 (100)
4 (100)
20 (500) or more
20 (500) or more
12 (300)
or more
12 (300)
or more
Service space
Service access
[ Top view ]
Indoor unitIndoor unit
[ Top view ]
It shall be possible to install and remove
the control box.
It shall be possible to install and remove
the control box, fan units and lter.

1 When drain pump is used, leave
the space required for service and
maintenance (Refer to chapter 10. 9-1.
DRAIN PUMP UNIT)

2 When drain hose is connected, the
required dimension is 16 (400) or more.

1

2
- (04-40) -
INDOOR UNITS INDOOR UNITS
