CEILING TYPE

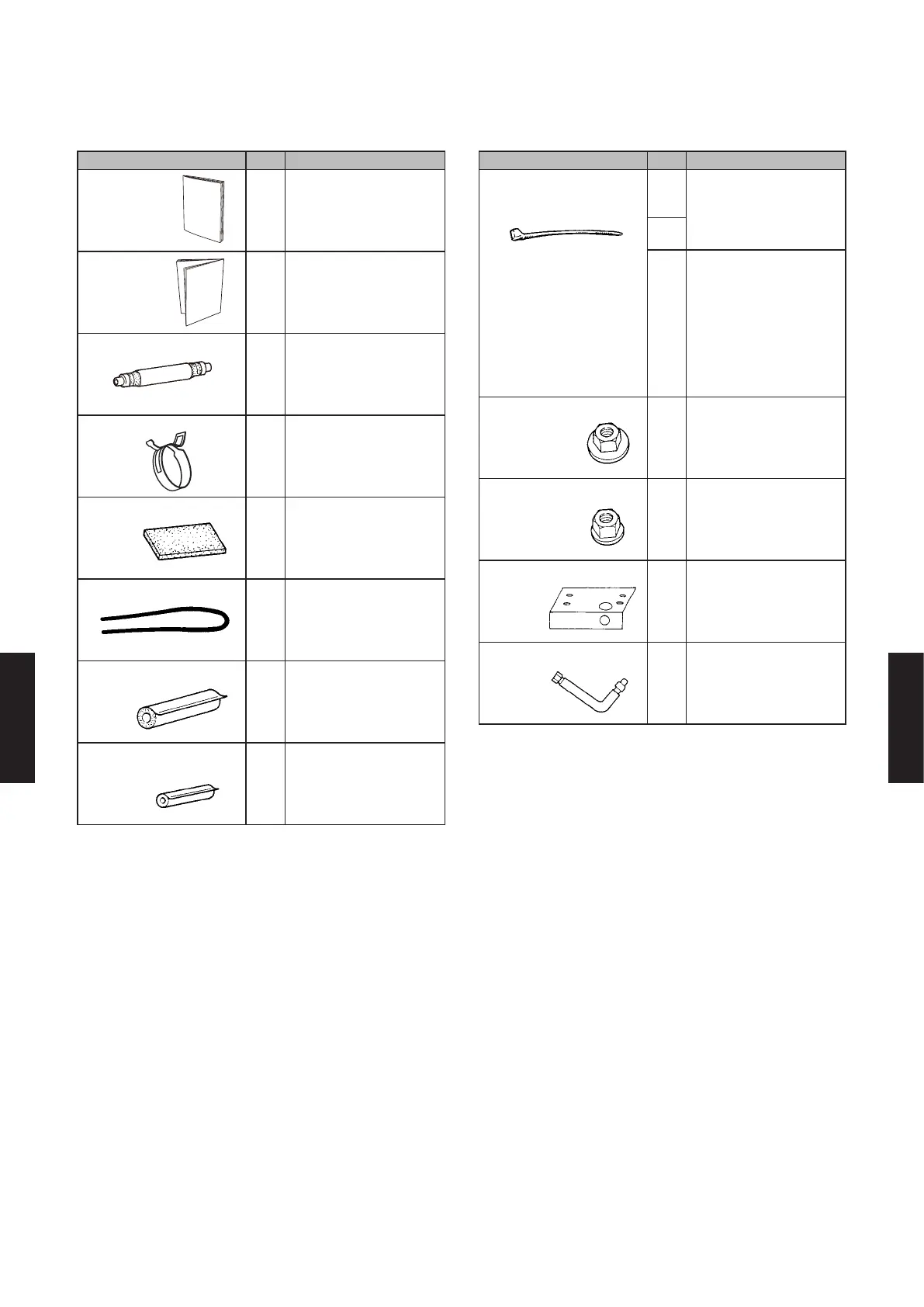

Name and shape Q'ty Application
Operating
manual
1
Installation
manual
1
Drain hose
1
For connecting drain
hose.
Hose band
1
For installing drain hose
Drain hose insulation
1
Adhesive type
3-15/16 x 8-21/32 in.
(100 x 220 mm)
VT wire
1
For xing the drain hose
11-11/32 in.
(L=28 0 m m)
Pipe Insulation
(Large)
2
For indoor piping
connection
(Gas pipe)
Pipe Insulation
(Small)
1
For indoor piping
connection
(Liquid pipe)
Name and shape Q'ty Application
Cable Tie(s)
Extra
large
4
For securing the
refrigerant connection
pipes.
Large
4
Medium
3
For securing the power
supply, transmission
cable and remote control
cable. Do not run power
cable and transmission
cable together, electrical
interference will cause
communication errors.
Special nut A
(Large ange)
4
For installing indoor unit
Special nut B
(Small ange)
4
For installing indoor unit
Installation template
1
For positioning the
indoor unit
Auxiliary pipe assembly
1
For connecting the
piping
