FUNCTION SETTING

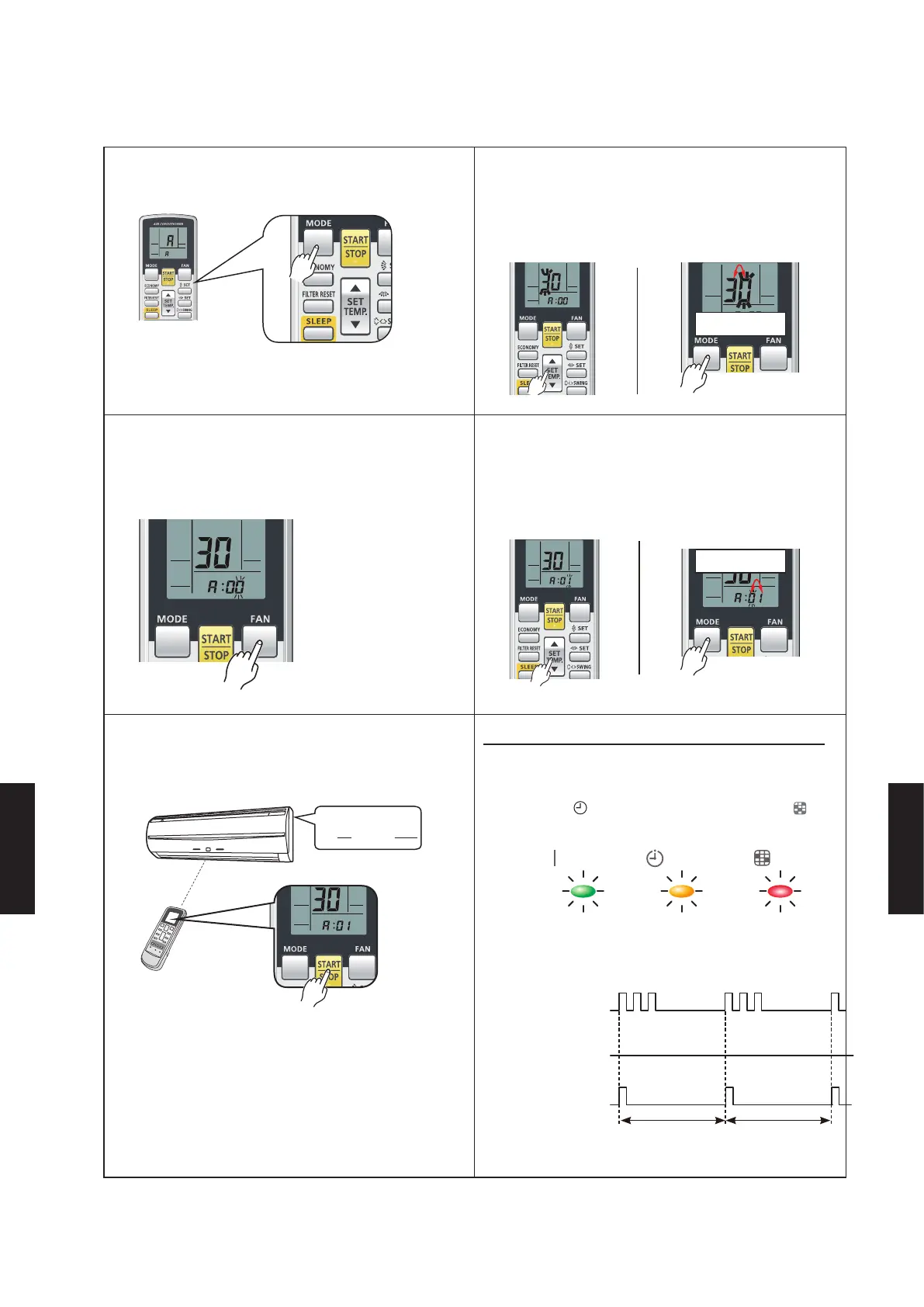

(6) Press the “MODE” button to access the
function setting mode.
(7) Press the “
p
” or the “
q
” buttons to
select the function number.
Each time the “MODE” button is pressed, it
switches between the one's place and the ten's
place positions.
Change digit
(8) Press the "FAN" button to proceed to
setting the number. (Press the "FAN"
button again to return to the function
number selection.)
(9) Press the “
p
” or the “
q
” buttons to select
the setting number.
Each time the “MODE” button is pressed, it
switches between the one's place and the ten's
place positions.
Change digit
(10) Press the “START/STOP” button once to
send the information. A beeping sound will
be heard if the command is accepted.
Pi Pi
Pi PiPiPi
¾
In the following cases the setting signal is not read
and a buzzer sounds.
The function setting No. is set out of range
: Pi Pi Pi Pi Pi
Case1 : When setting number is one digit.
(11-1) Indoor unit will display the function
setting number on "OPERATION"(GREEN),
"TIMER "(ORANGE) and "FILTER
"(RED) light.
OPERATION
(GREEN)
TIMER
(ORANGE)
Flashing times of
function numbers
(the ten’s place)
FILTER
(RED)
Flashing times of
function numbers
(the one’s place)
Flashing times of
setting numbers
(the one’s place)
(Example) Function number : 30, Setting number : 01
OPERATION LAMP
(GREEN)
TIMER LAMP
(ORANGE)
FILTER LA MP
(RED)
0.5sec ON / 0.5sec OFF
OFF
1 time 1 time
3 times 3 times
...
...
(Phase1) : 12sec (Phase1) : 12sec
0.5sec ON / 0.5sec OFF
¾
Number 0 setting will not indicate TIMER LAMP and
FILTER LAMP.
