Fujitsu CT114 User Manual

CT114_Rev2
21
Set Up the Cleaver

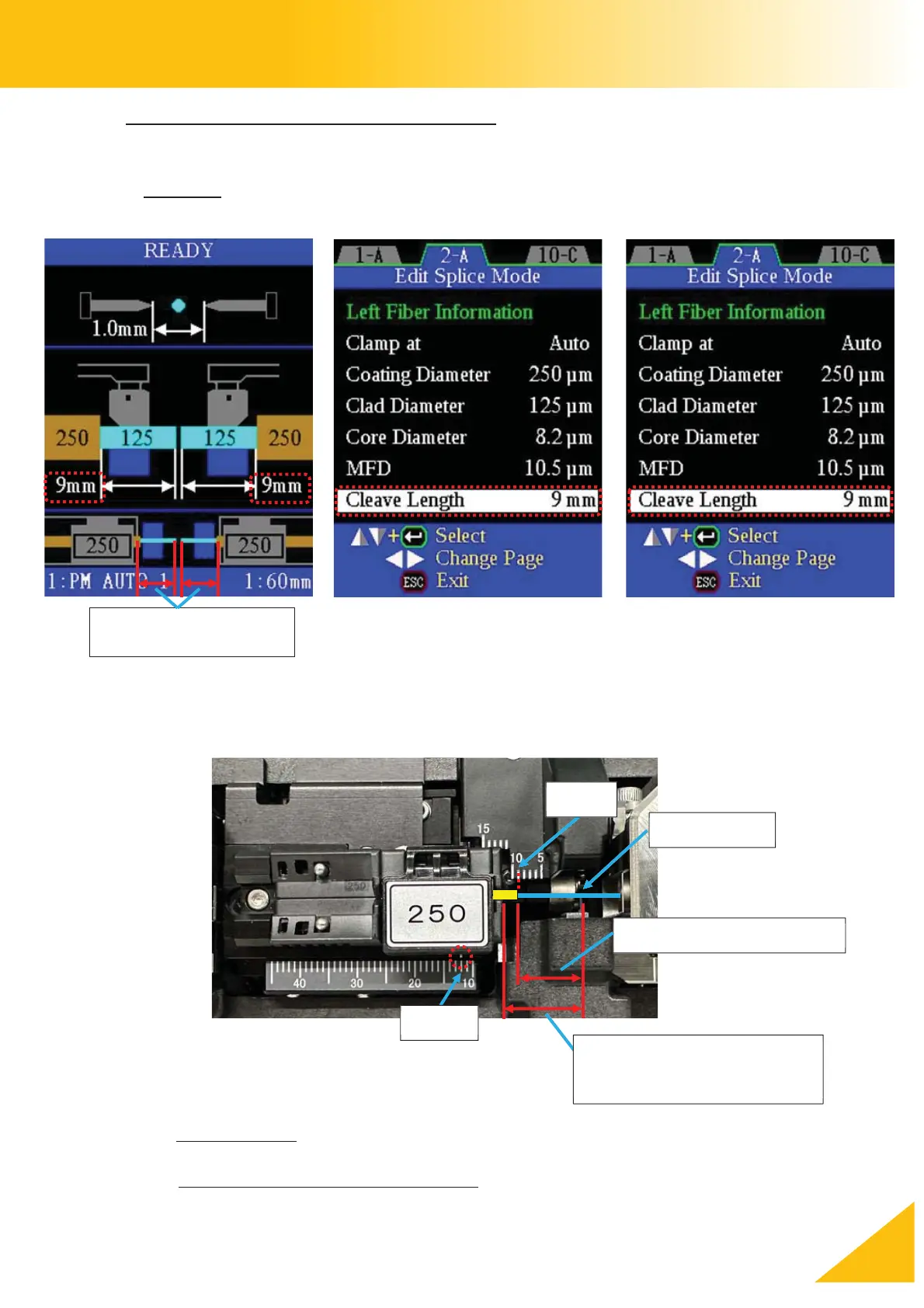

Fiber Holder Adapter Position Adjustment
Align the Fiber Holder Adapter position according to the splicer settings.
Example: Using an FSM-100 series splicer, the total fiber length from the fiber holder is
12mm by default, so the cleave length is set to 9mm.
When an FSM-100 series splicer is used in the standard position, set the Fiber Holder
Adapter position to 12mm as shown below. The scale on the Fiber Holder Adapter
reflects the total fiber length from the fiber holder.


“Cleave Length” refers to the distance between the cleave location and the coating
edge.

“Total Fiber Length from Fiber Holder” refers to the distance between the cleave point
and the fiber holder edge.
Cleave Length : 9mm*
Cleave point
Total Fiber
Length
from the
fiber holder :
12mm**
9mm
12mm
Total Fiber length from
the fiber holder : 12mm
