CT1
14_R
ev2
22

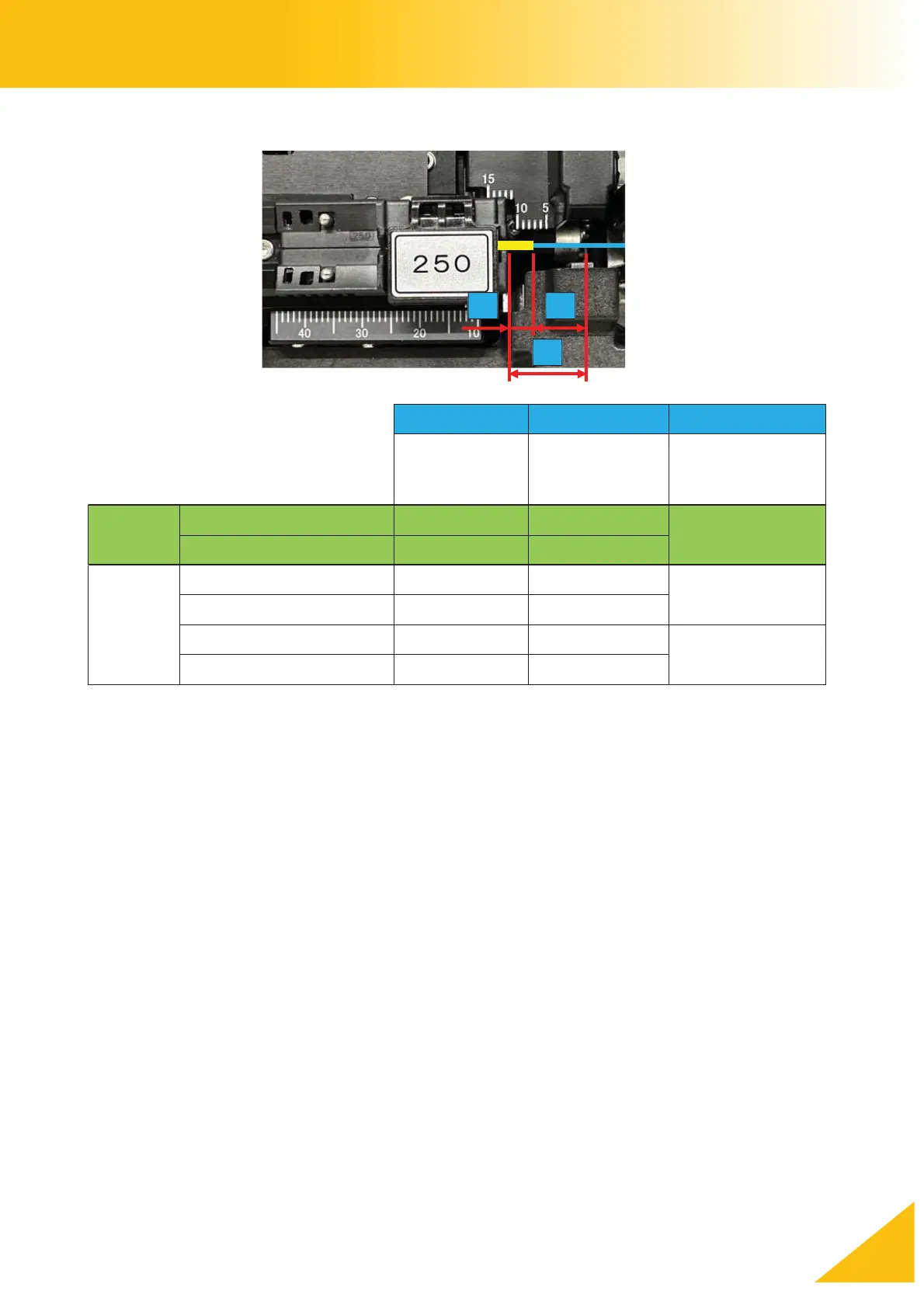

Set Up the Cleaver
Refer to
the following t
able
for the anther cleave length optio
ns.
A
B
C
Cleave length
Coating length
Total fiber length
Standard
Normal splicing
9mm
3mm
12mm
Coating clamp splicing
4mm
8mm
Optional
Normal splicing
8mm
3mm
11mm
Coating clamp splicing
3mm
8mm
Normal splicing
10mm
3mm
13mm
Coating clamp splicing
5mm
8mm
C
A
B
25
27
Table of Contents
Default Chapter
3
Table of Contents
3
Safety Information
5
General Information
8
Introduction
8
Components
9
Description of Cleaver
11
Functions and Names of Sheet Keys
13
Touchscreen Operation and Function
14
Touchscreen Operation and Composition
15
How to Input Mode Title/Comment/Password
16
Set up the Cleaver
17
How to Install the Inserts
17
How to Replace the Inserts
20
Selection Guide for Choosing Appropriate Inserts
21
Fiber Holder Adapter Installation
22
Using the Fiber Holder Adapter
24
How to Adjust the Clamp Force
29
How to Change the Magnets' Position
31
Power Supply
33
Turning Power ON/OFF
34
Sheet Key Operations on the [READY] Screen
36
Cleaving Operation
37
Selecting a Cleave Mode
37
Loading Fiber into the Cleaver
38
Removing the Fiber
42
Storing Cleave Results
42
Fiber Position Adjustment
43
Fiber Position Confirmation
43
How to Replace the Shims
46
Daily Maintenance
47
Cleave Menu
48
Composition of Cleave Menu
48
Cleave Mode Parameters
52
Fundamental Settings
52
Fiber Type
53
Special Settings
54
Clamp Settings
55
Tension Settings
55
Blade Settings
56
Backstop Setting
57
Cleave Result Memory
58
Cleave Memory Comment
61
Setting Menu
62
Settings Menu
62
Machine Settings
62
Menu Lock Settings
64
Maintenance Menu
66
Composition of Maintenance Menu
66
Touchscreen Calibration
67
Blade Adjustment
67
Blade Replacement
70
Fiber Holder Adapter Installation
73
Fiber Position Confirmation
74
Diagnostic Test
76
Blade Management
76
Fiber Holder Management
77
User Guide
77
Maintenance Information
78
Error Message List
79
Questions and Troubleshooting
80
Power Supply
80
Cleave Operation
80
Supervisor Settings
81
Other Functions
81
Other
82
Certificate
82
Warranty and Contact Address
84
Warranty
84
Contact Address
85
