Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

▶
"Disconnecting the power cord" on page 46
▶
"Getting access to the component" on page
48
Removing the defective standard PSU

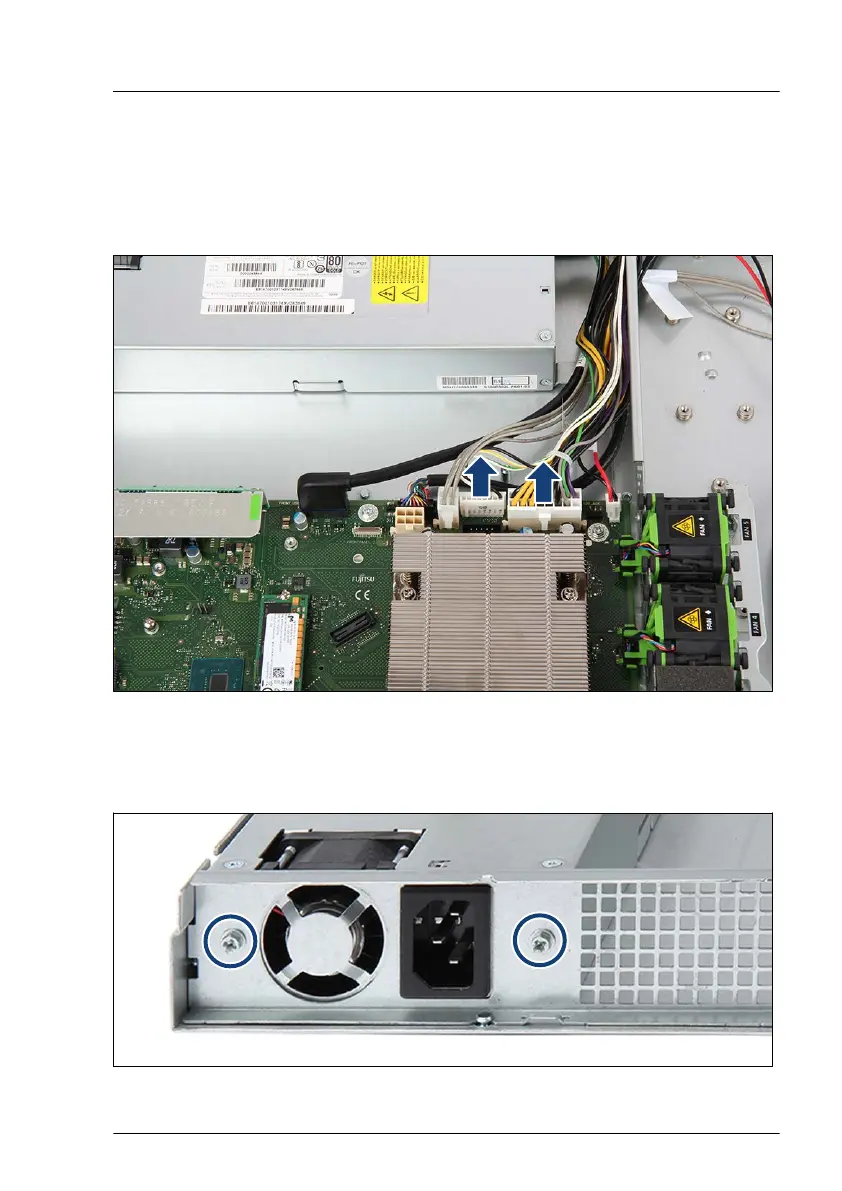

Figure 23: Disconnecting the power cables
▶
Disconnect the two power cables from the system board connectors "PC98"
and "PWR MAIN".
Figure 24: Removing the screws
Power supply unit (PSU)
RX1330 M4 Upgrade and Maintenance Manual 101

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
