Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

▶

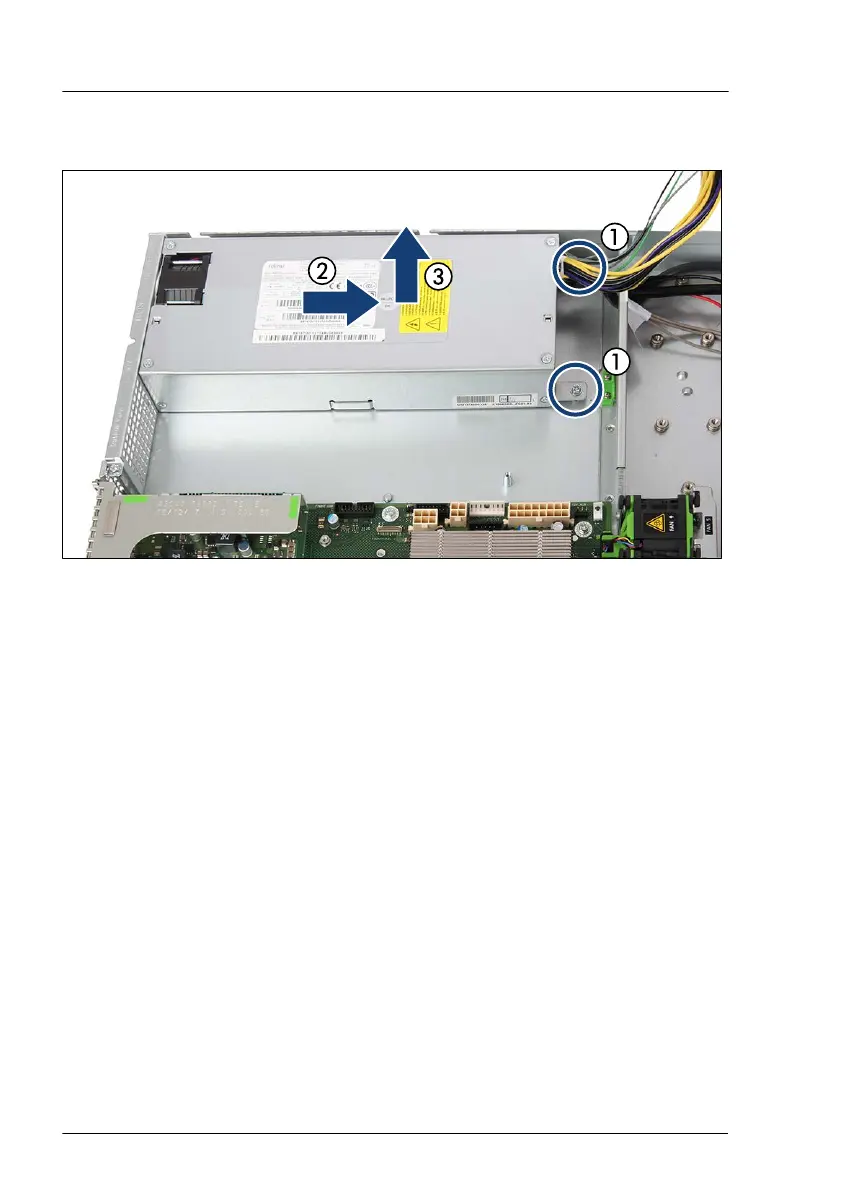

Remove the two screws (see circles).
Figure 25: Removing the standard PSU
▶
Remove the two screws (1).
▶
Pull the PSU a few centimeters toward the inside (2).
▶
T
ake the PSU out upward (3).
Power supply unit (PSU)
102 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
