Installing the new standard PSU

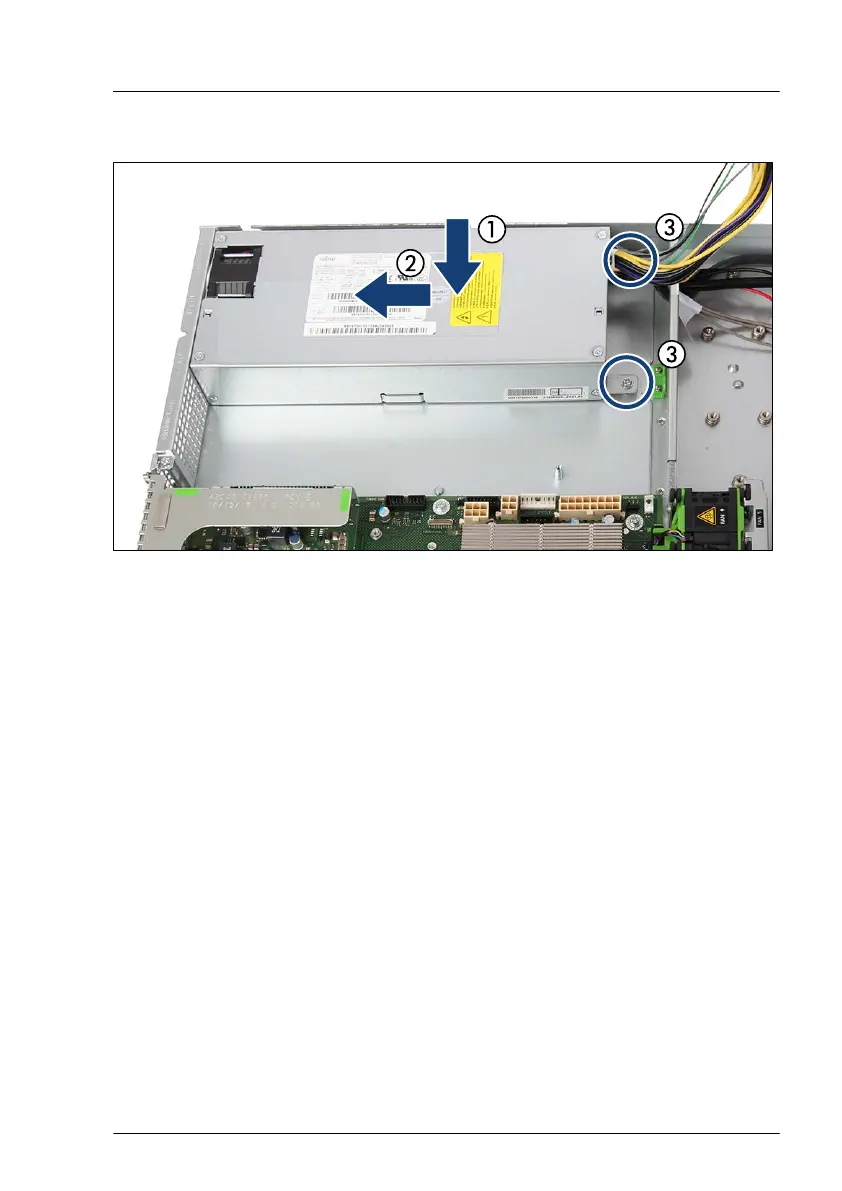

Figure 26: Installing the standard PSU
▶
Insert the PSU into the bay (1).
▶
Push the PSU toward the adapter plate (2).
▶
Fasten the PSU with two screws in the chassis (3).
▶
Fasten the PSU with two screws to the adapter plate, see "Removing the
screws" on page 101.
Power supply unit (PSU)
RX1330 M4 Upgrade and Maintenance Manual 103
