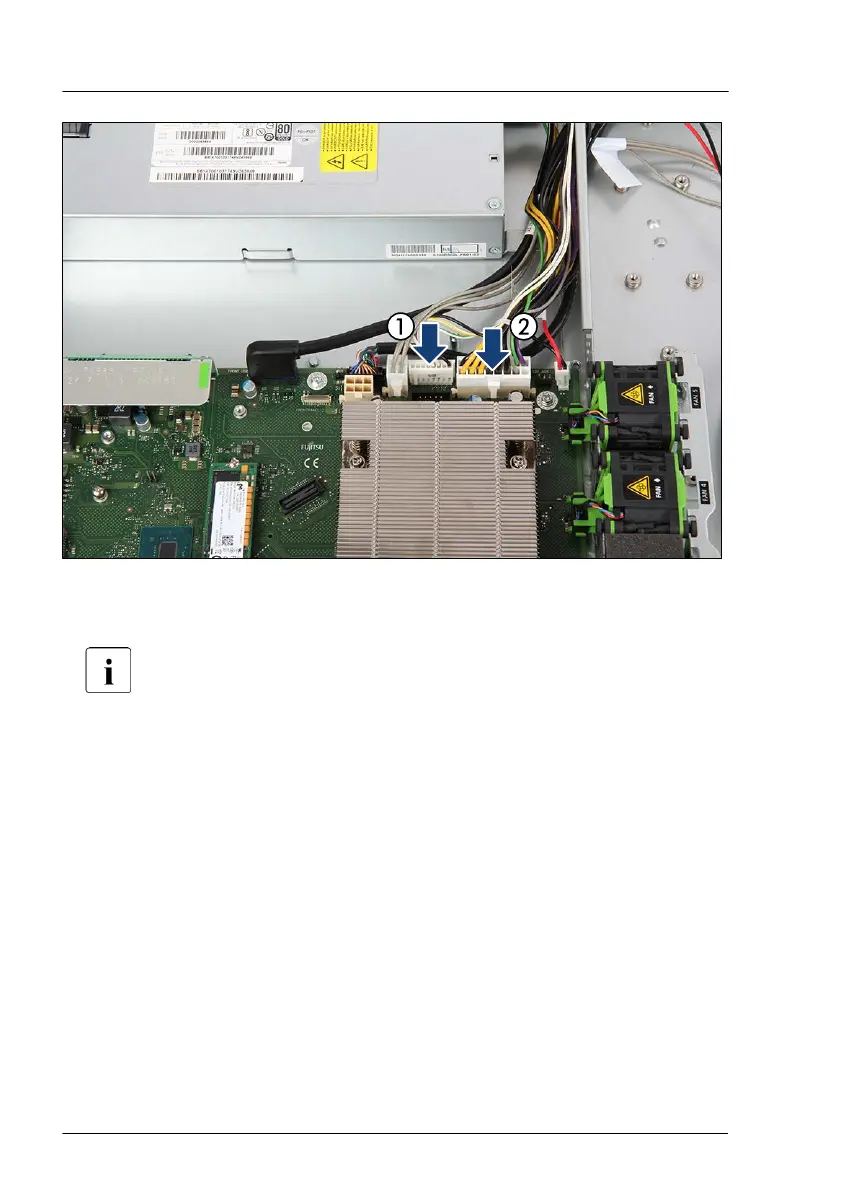

Figure 27: Connecting the power cables
▶
Connect the power cables to the system board:
For the cable plans, see "Appendix B" on page 365
.
▶
PSU power cable (1) to connector "PWR MAIN".
▶
Power signal cable (2) to connector "PC98".
Concluding steps
▶
Install the system fan module, see "Installing the new fan module" on
page
181
.
▶
"Reassembling" on page 52.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 58.
▶
"Resuming BitLocker functionality" on page 86.
▶
"Performing a fan test" on page 96.
Power supply unit (PSU)
104 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
