Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

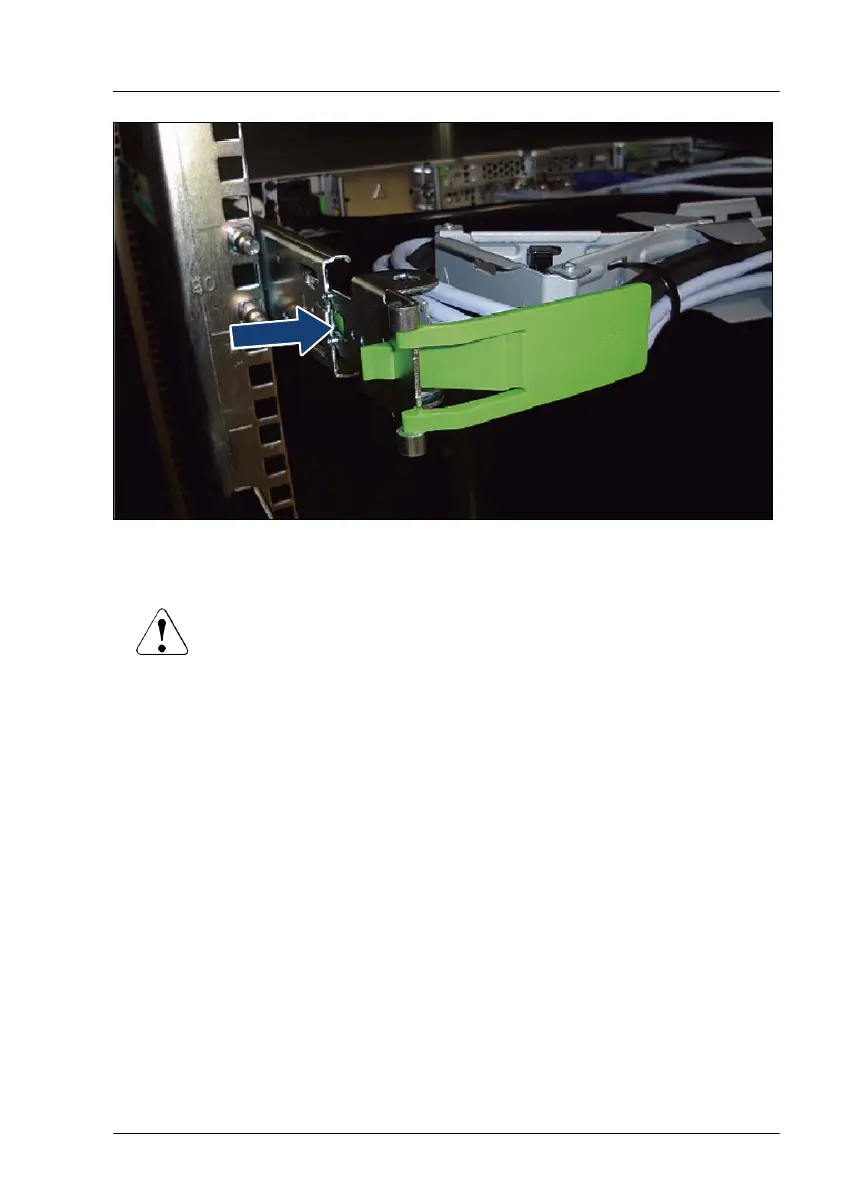

Figure 33: Unlocking the CMA stopper
▶
Push the lock spring inward to unlock the CMA stopper.
CAUTION
▶
In case of not enough space at the under side, unlock the CMA
stopper of the server below and pull out the CMA to the rear
side.
Power supply unit (PSU)
RX1330 M4 Upgrade and Maintenance Manual 109

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
