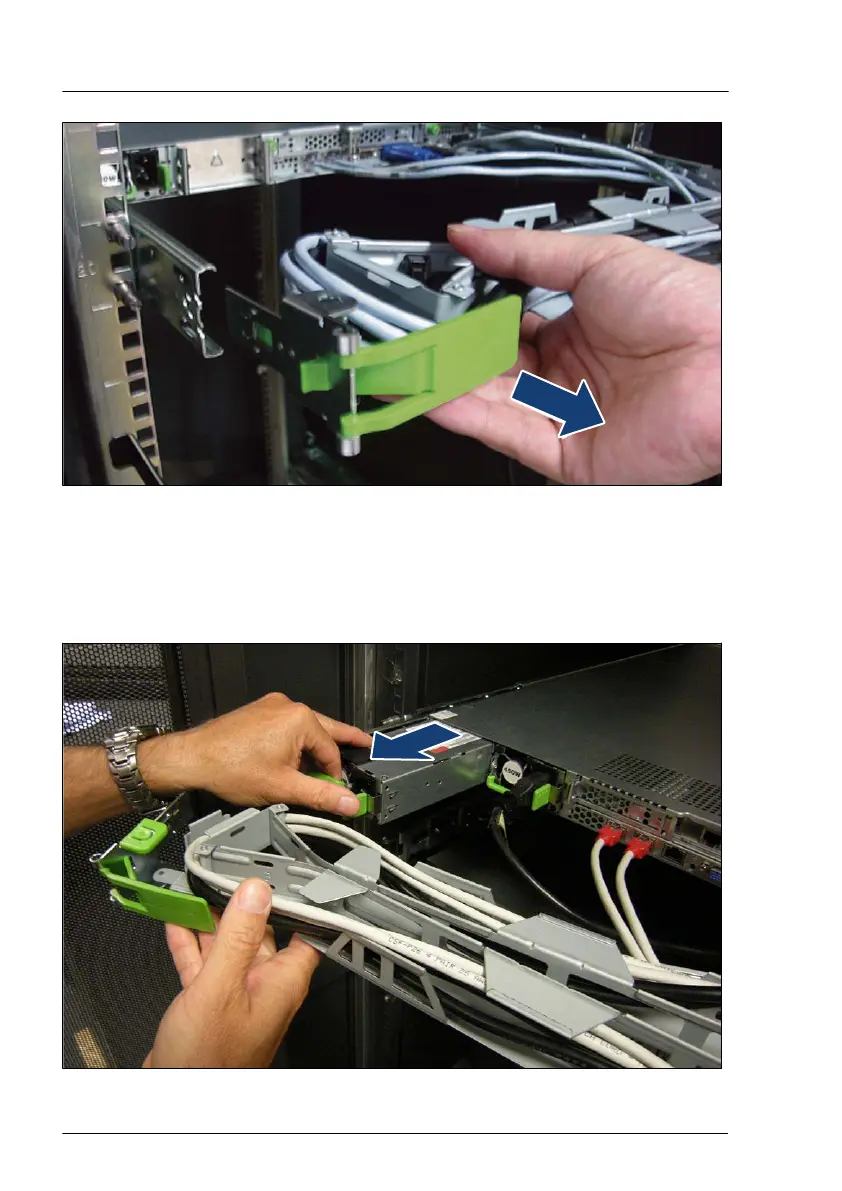

Figure 34: Removing the CMA stopper

▶

Remove the CMA stopper with the mounted crossbar.

▶

Hold the CMA stopper

, the crossbar and the CMA including cables in the

one hand.

Figure 35: Removing the PSU

Power supply unit (PSU)

110 Upgrade and Maintenance Manual RX1330 M4
