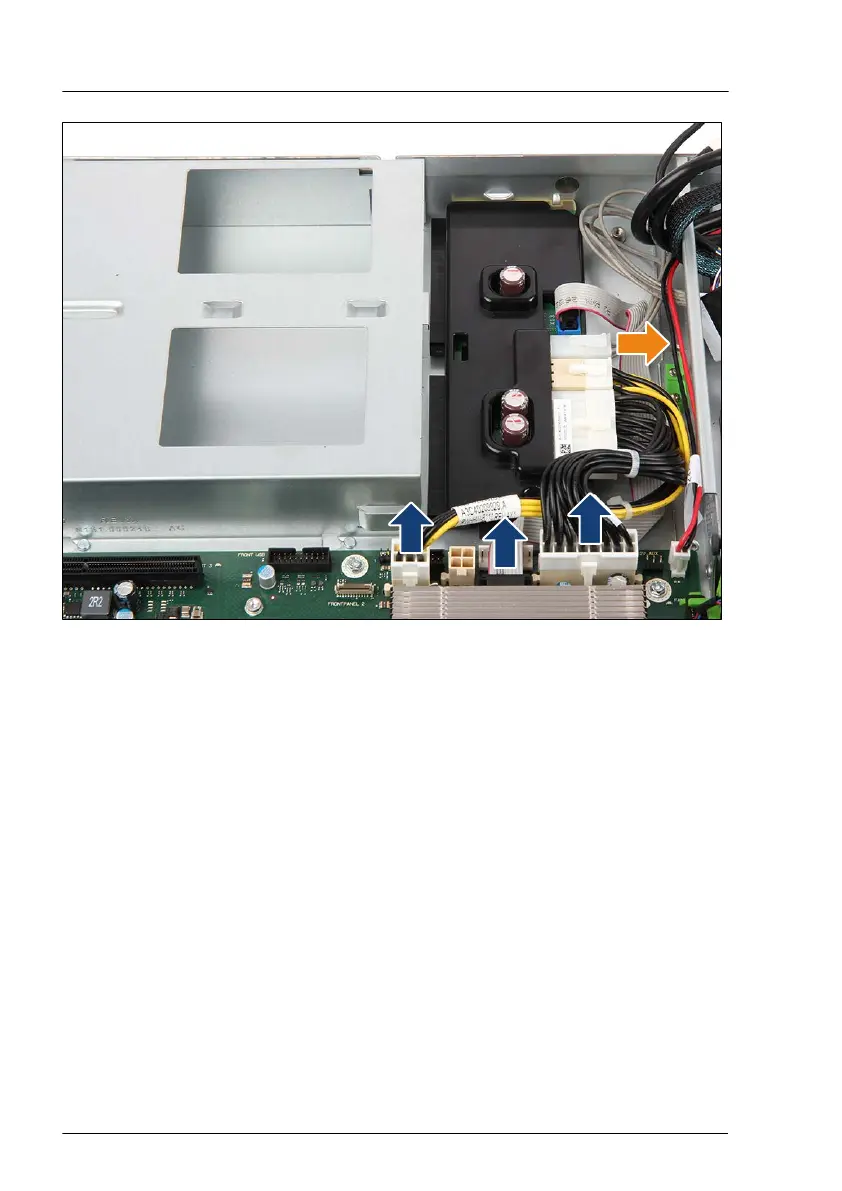

Figure 39: Disconnecting cables (A)

▶

Disconnect the two power cables and the flat band cable from the system

board (see blue arrows).

▶

Disconnect the HDD power cable from the power distribution board (see

orange arrow).

Power supply unit (PSU)

116 Upgrade and Maintenance Manual RX1330 M4
