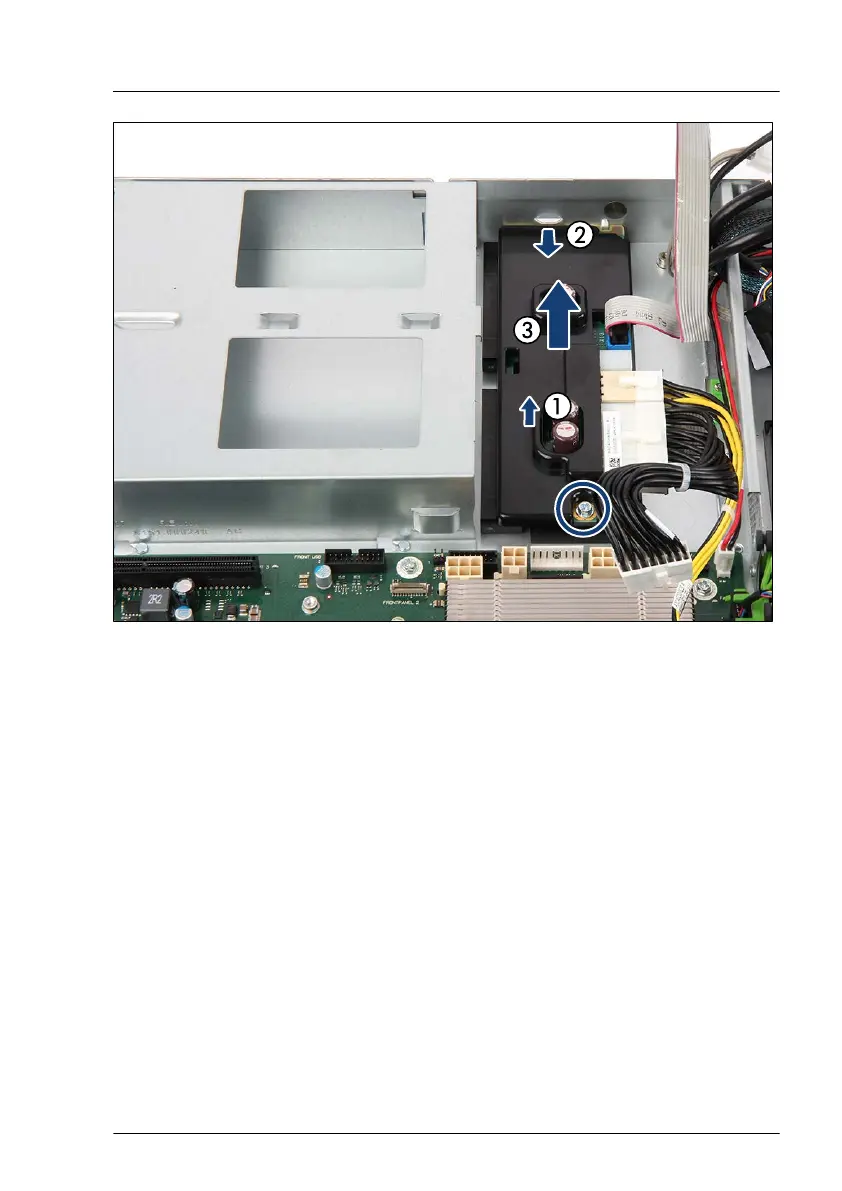

Figure 40: Removing the power distribution board
▶
Remove one screw (see circle).
▶
Lift the power distribution board out of the centering ring on the standof
f (1)
and move it in direction to the system board (2).
▶
Remove the power distribution board upward (3).
Power supply unit (PSU)
RX1330 M4 Upgrade and Maintenance Manual 117
