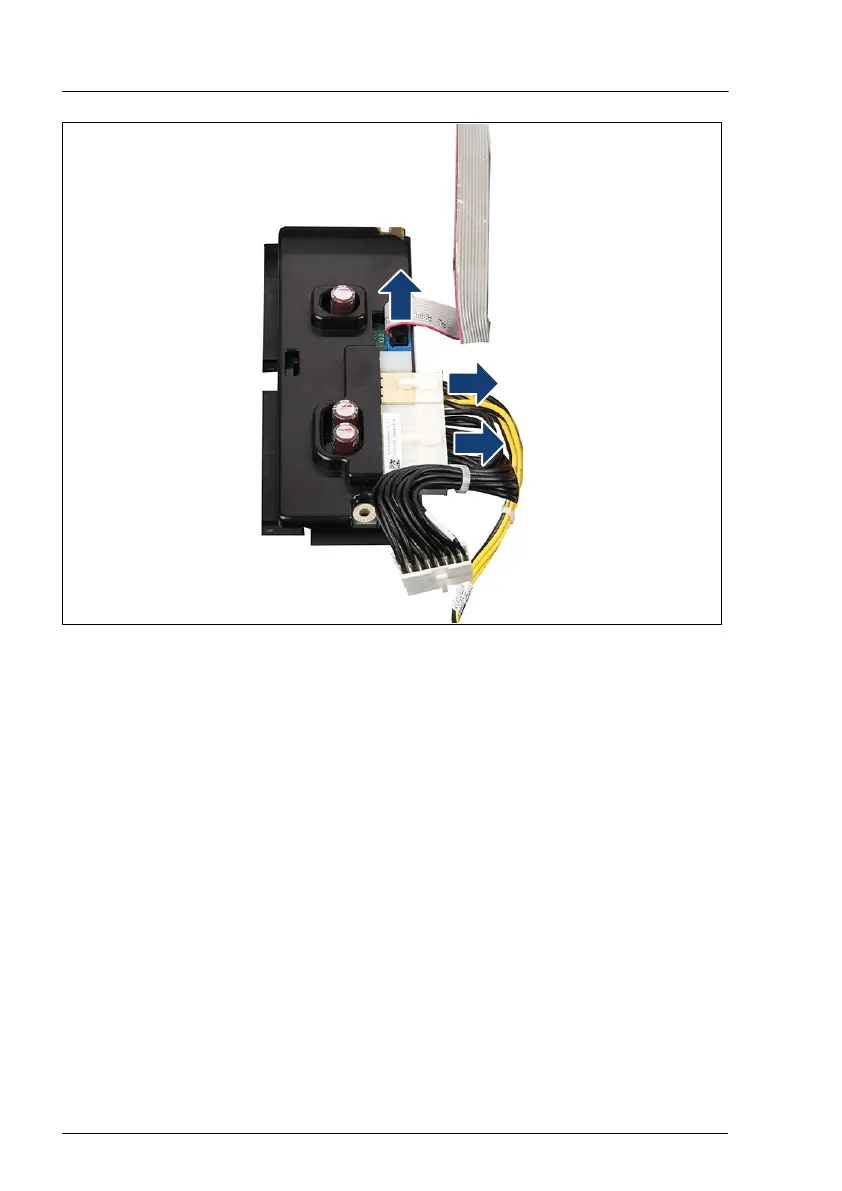

Figure 41: Disconnecting cables (B)

▶

Disconnect the remaining cables from the defective power distribution board

(see arrows).

Power supply unit (PSU)

118 Upgrade and Maintenance Manual RX1330 M4
