Installing the new power distribution board

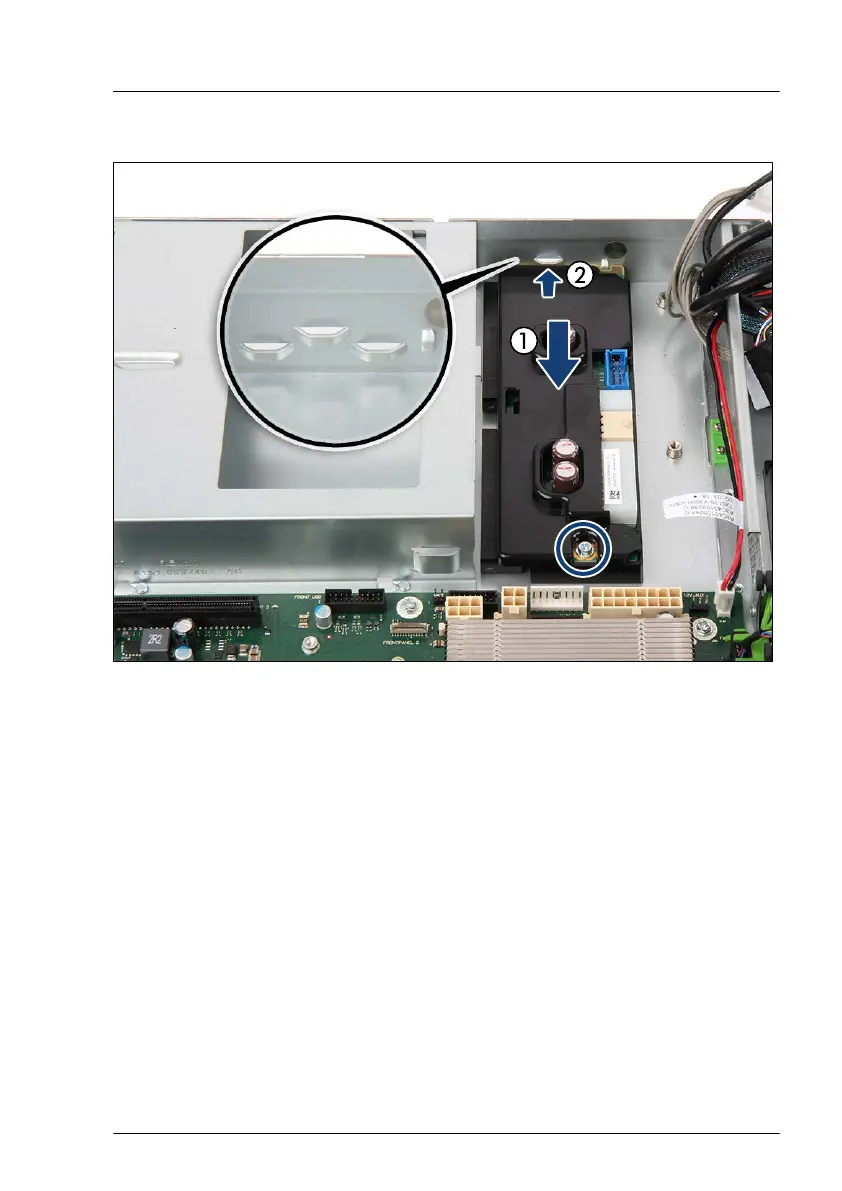

Figure 42: Installing the power distribution board

▶

Insert the power distribution board (1) and slide it in the guidings of the

chassis (2).

▶

Fasten the power distribution board with one screw (see circle).

Power supply unit (PSU)

RX1330 M4 Upgrade and Maintenance Manual 119
