Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

CAUTION
All data on all HDDs in the array will be lost when deleting the RAID
array!
▶
Be sure to back up your data before deleting a RAID array.
▶
For more information, see the "ServerView Suite RAID
Management" user guide.
Removing a 3.5-inch HDD module
▶
Pinch the green locking clips and open the locking lever, see Figure 63.
▶
Pull the HDD module out a few centimeters.
▶
W
ait about 30 seconds to allow the HDD to spin down.
This period is necessary for the RAID controller to recognize that an
HDD module has been removed and for the HDD to come to a stop.
▶
Pull the HDD module completely out of its bay
.
Installing a 3.5-inch dummy module
CAUTION
▶
If the removed HDD module is not replaced immediately, always
replace a dummy module into the unused HDD bay to comply with
applicable EMC regulations and satisfy cooling requirements.

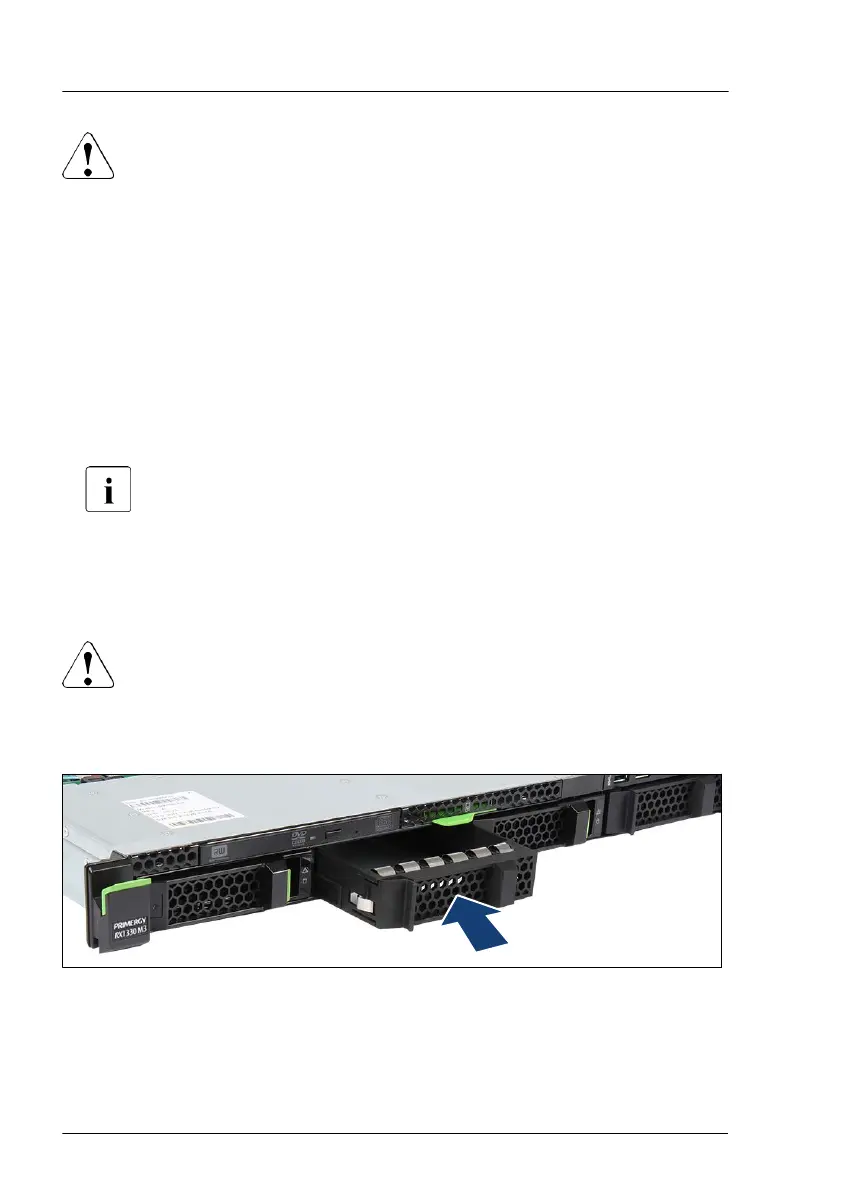

Figure 65: Installing the 3.5-inch dummy module
▶
Push the dummy module into the empty bay until it engages.
Hard disk drive (HDD) / solid state drive (SSD)
144 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
