Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

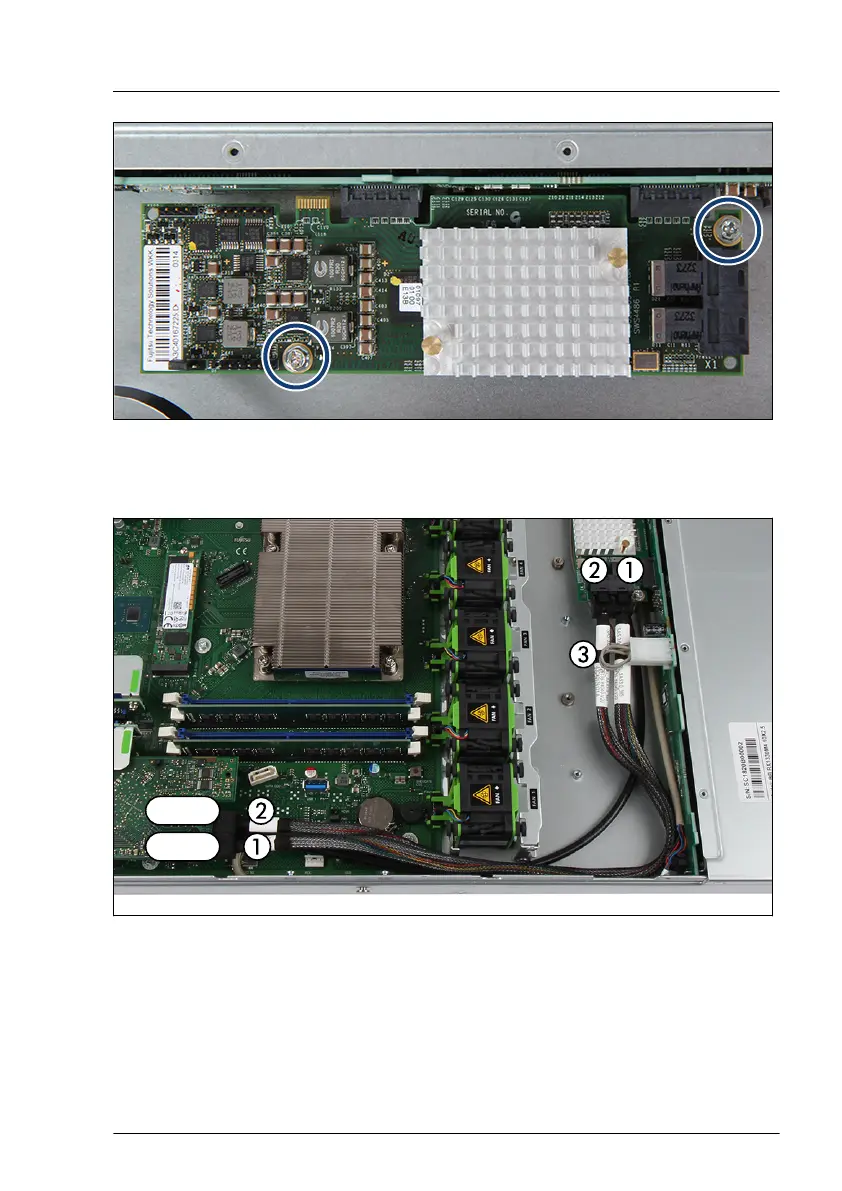

Figure 92: Installing the SAS expander board (B)
▶
Fasten the SAS expander board with two screws (see circles).
MLC 2
MLC 1
Figure 93: Connecting SAS cables
1 SAS cable to SAS expander board
2
SAS cable to SAS expander board
3
Power cable to backplane
▶
Connect all cables.
Hard disk drive (HDD) / solid state drive (SSD)
RX1330 M4 Upgrade and Maintenance Manual 171

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
