Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

Installing the new 10x 2.5-inch HDD backplane

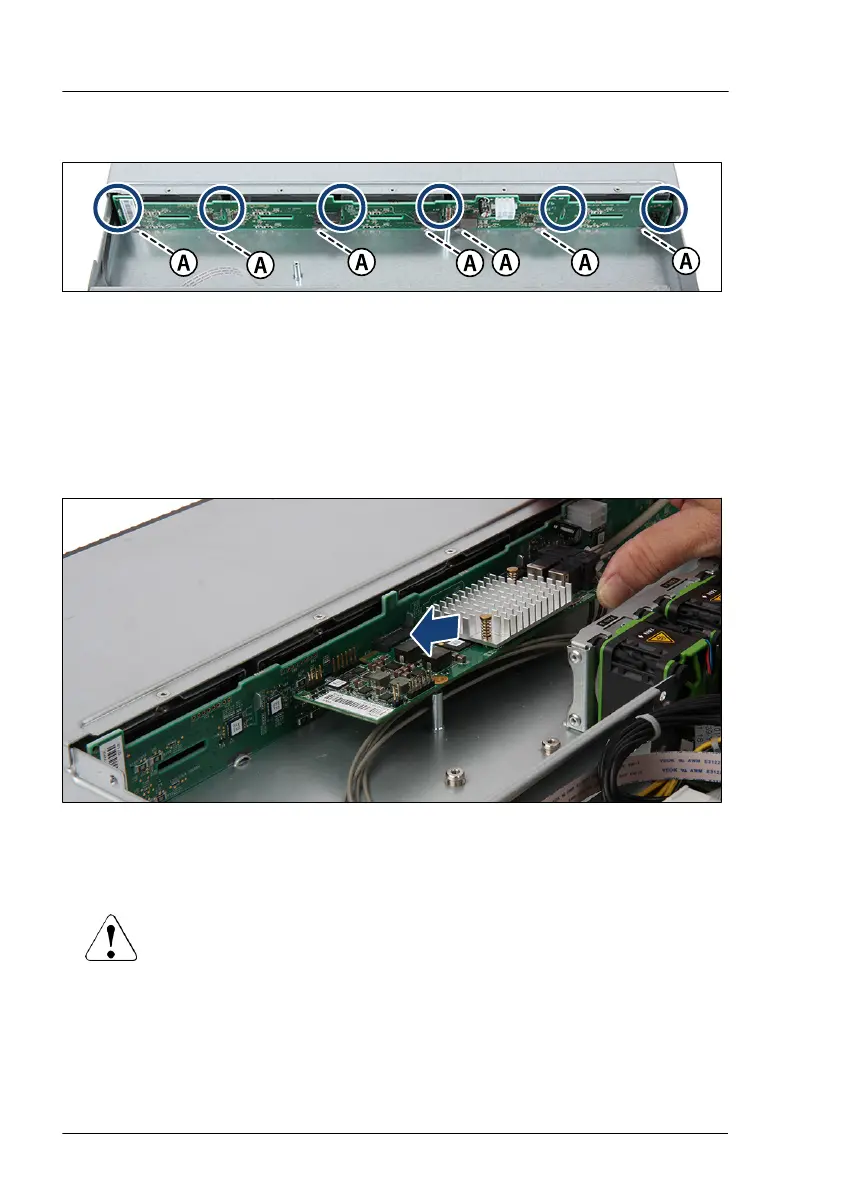

Figure 90: Installing the 10x 2.5-inch HDD backplane
▶
Position the HDD backplane on the six hooks (see circles).
▶
Push the HDD backplane downward. Make sure that the HDD backplane fits
into the guides (A).
Installing the SAS expander board
Figure 91: Installing the SAS expander board (A)
▶
Insert the SAS expander board into the two connectors of the HDD
backplane.
CAUTION
▶
Lift up the SAS expander board while inserting it in order to
prevent the components to be damaged by the stand-offs of the
chassis.
Hard disk drive (HDD) / solid state drive (SSD)
170 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
