Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

▶
Remove the two screws from the SAS expander board (see circles).
A
A

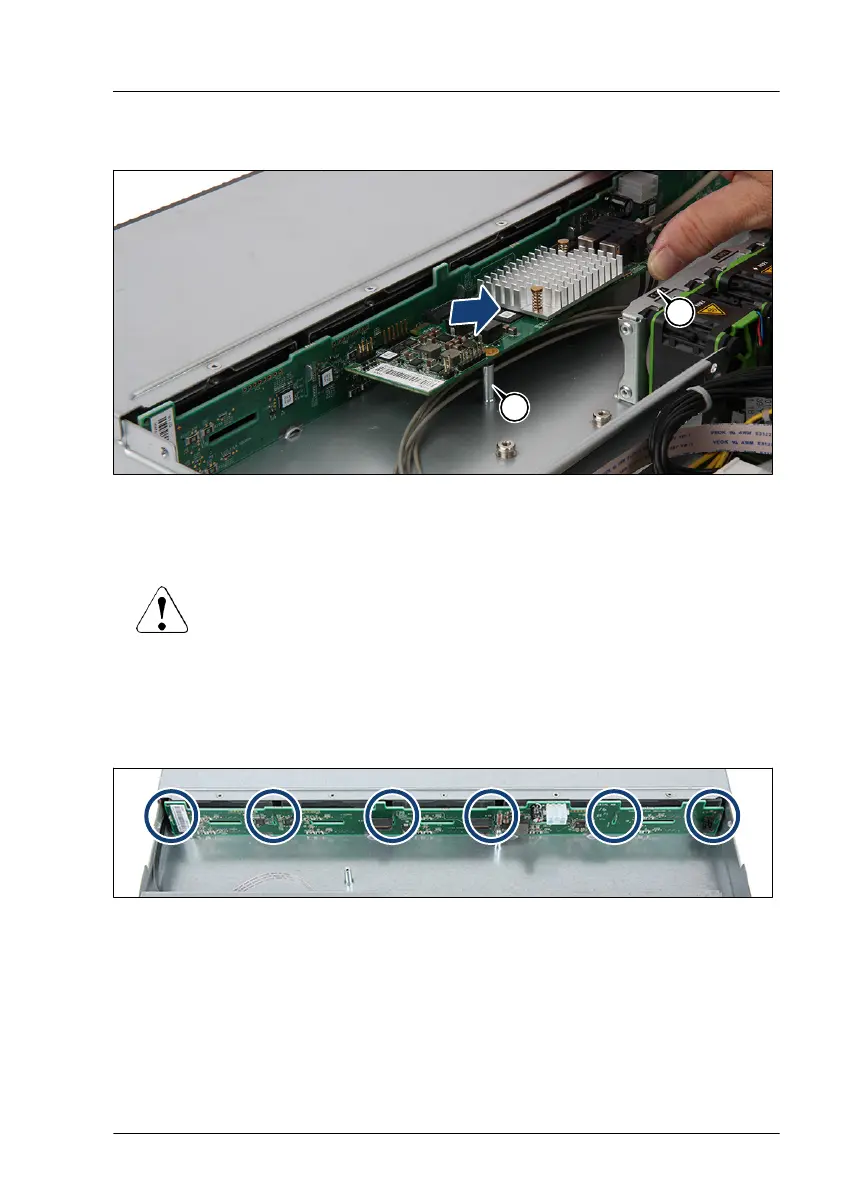

Figure 88: Removing the SAS expander board (B)
▶
Get the SAS expander board out of the two connectors of the HDD
backplane and remove it.
CAUTION
▶
Lift up the SAS expander board while removing it in order to
prevent the components to be damaged by the stand-offs (see A
in
Figure 88) of the chassis.
Removing the defective 10x 2.5-inch HDD backplane
Figure 89: Removing the 10 x 2.5-inch HDD backplane
▶
Pull the HDD backplane upward until the six hooks disengage (see circles).
▶
T
ake out the HDD backplane.
Hard disk drive (HDD) / solid state drive (SSD)
RX1330 M4 Upgrade and Maintenance Manual 169
