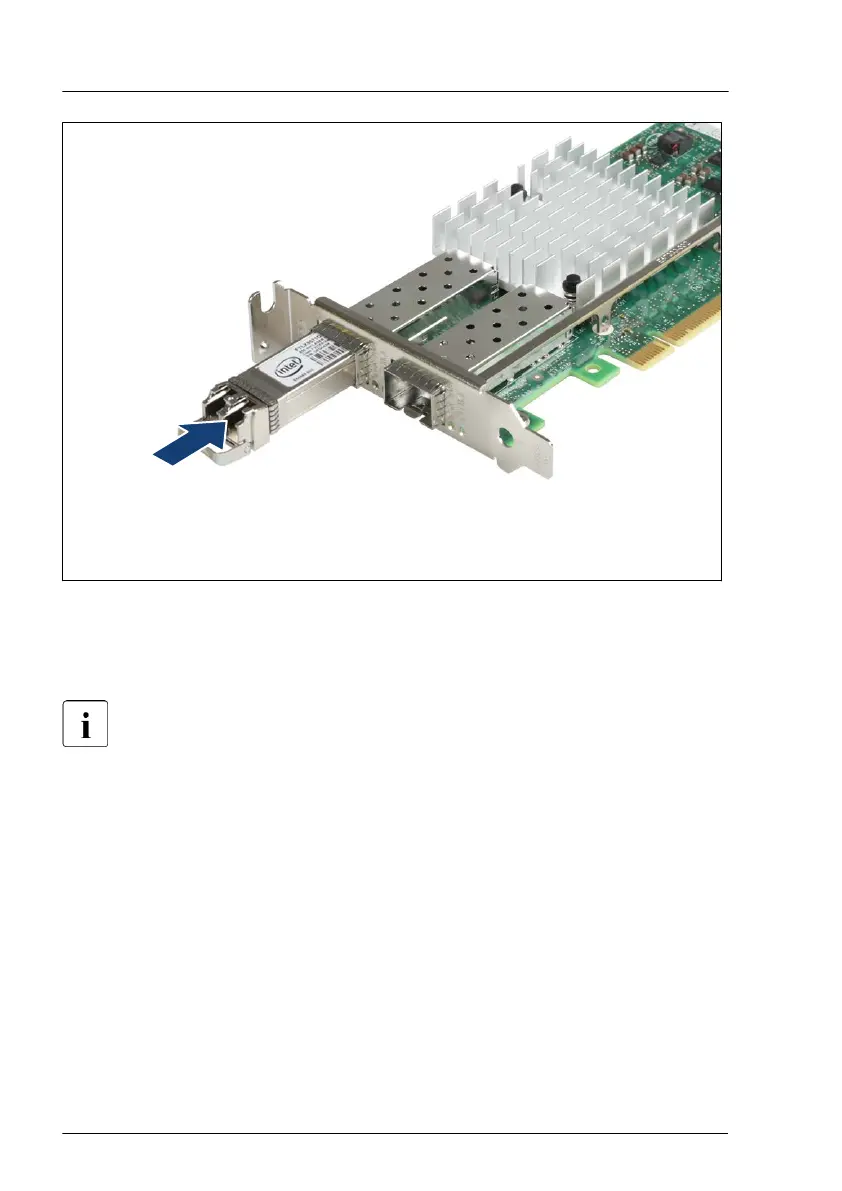

Figure 106: Inserting the SFP+ transceiver module

▶

Insert and slide the SFP+ transceiver module into the socket connector as

far as it will go.

If only one slot is equipped with a SFP+ transceiver module, use the left

connector as shown.

Expansion cards and backup units

190 Upgrade and Maintenance Manual RX1330 M4
