Fujitsu PRIMERGY RX1330 M4

To Next Page

To Previous Page

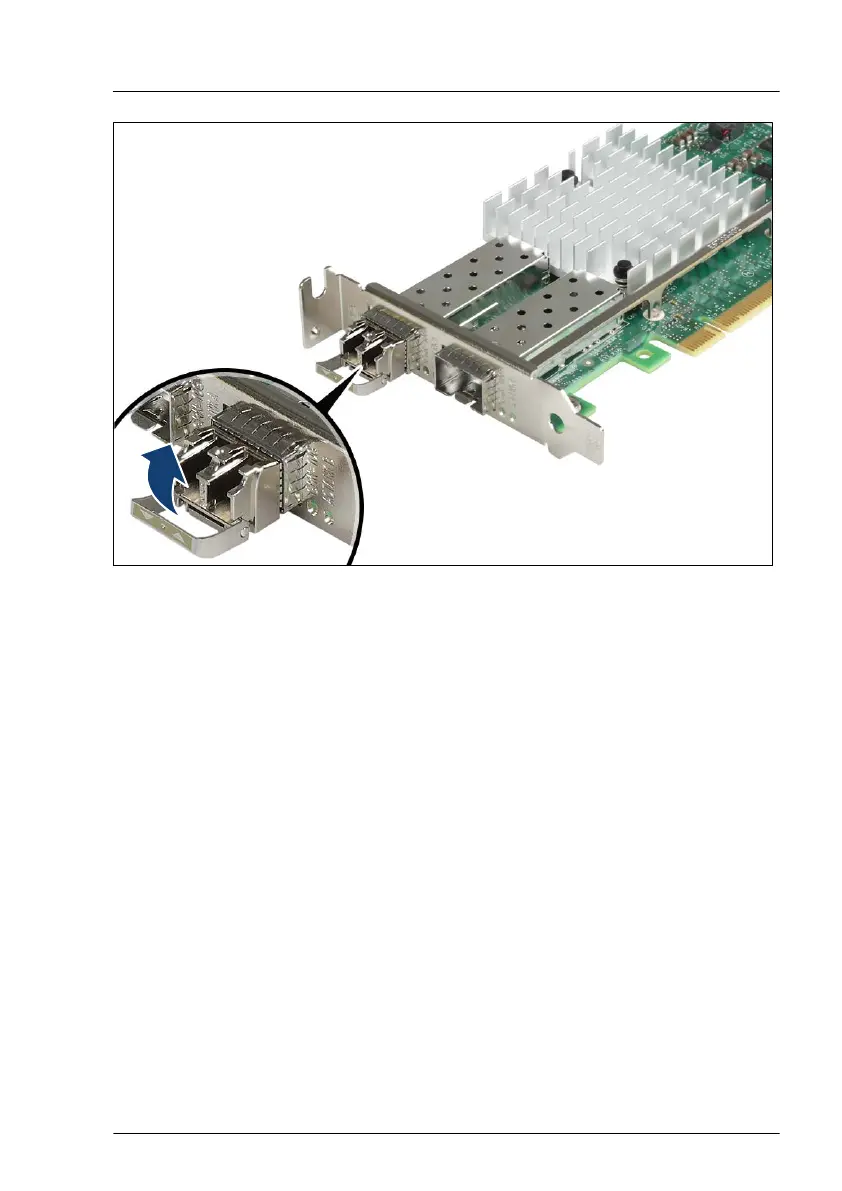

Figure 107: Latching the locking bail

▶

Carefully fold up and latch the locking bail.

Expansion cards and backup units

RX1330 M4 Upgrade and Maintenance Manual 191
