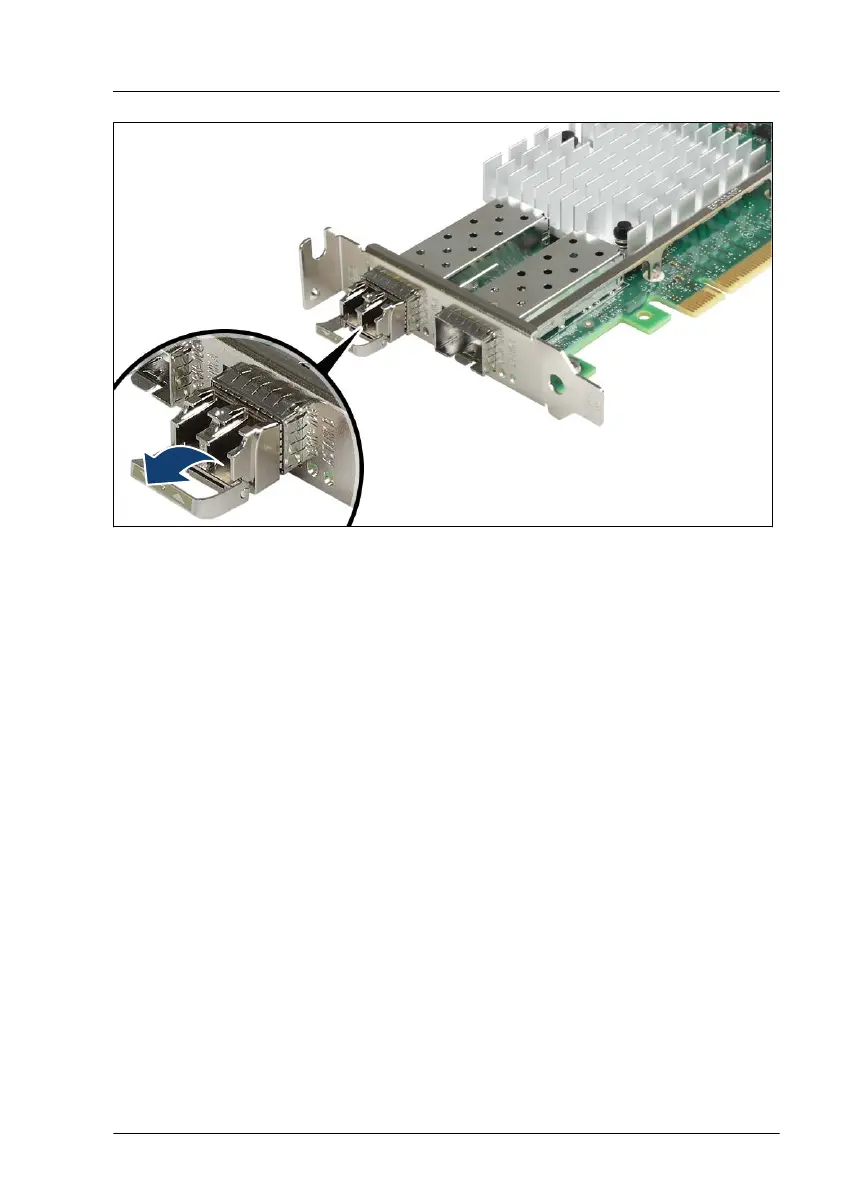

Figure 111: Unlatching the locking bail

▶

Carefully unlatch and fold down the locking bail on the SFP+ transceiver

module to eject the transceiver from the socket connector.

Expansion cards and backup units

RX1330 M4 Upgrade and Maintenance Manual 195
