Installing the expansion card
▶
Read the documentation supplied with the expansion card.
▶
If applicable, attach the required slot bracket to the expansion card, see
"Installing a slot bracket" on page
186
.
A
B

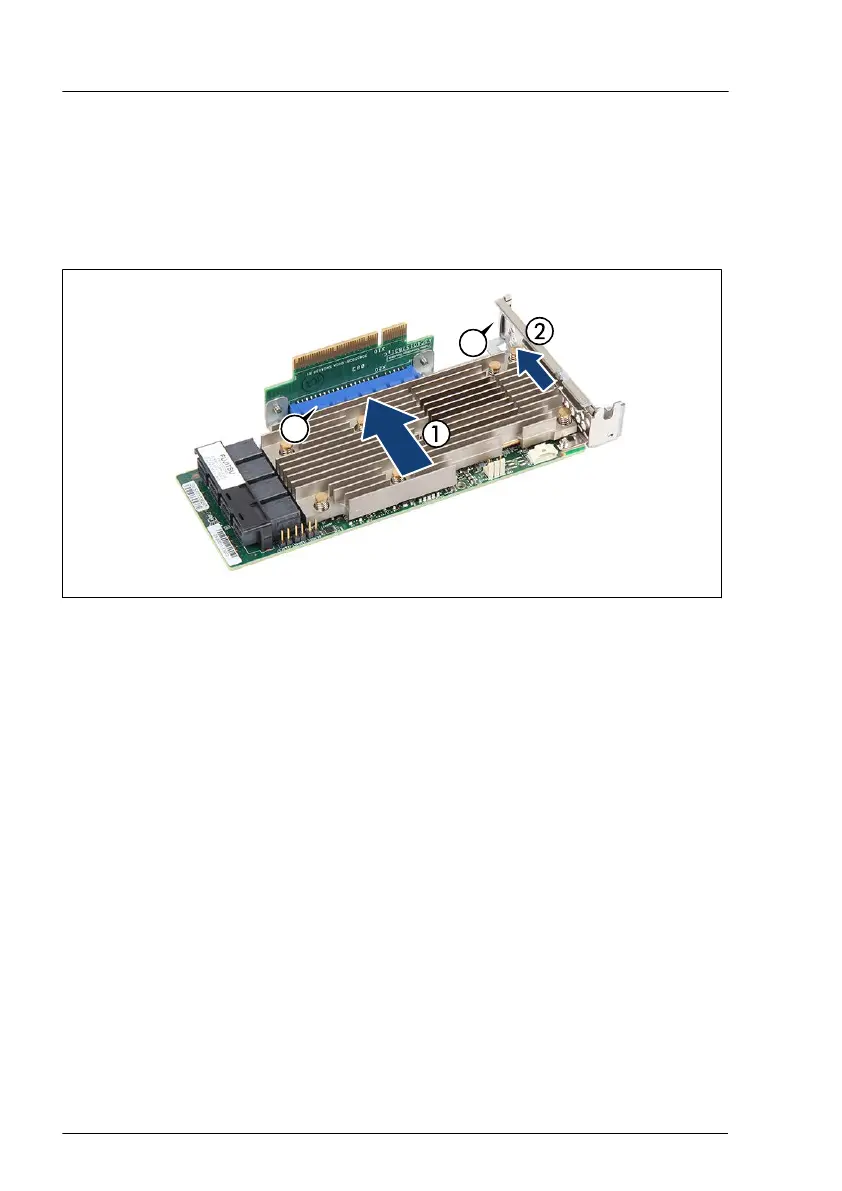

Figure 114: Installing the expansion card - example riser module 1
▶
Carefully press the expansion card into the riser card slot (A), until it clicks
into place (1).
▶
Make sure that the lug on the slot cover (B) clicks into place in the
corresponding hole (2).
The following figures show examples for installing expansion cards.
Expansion cards and backup units
198 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
